Description

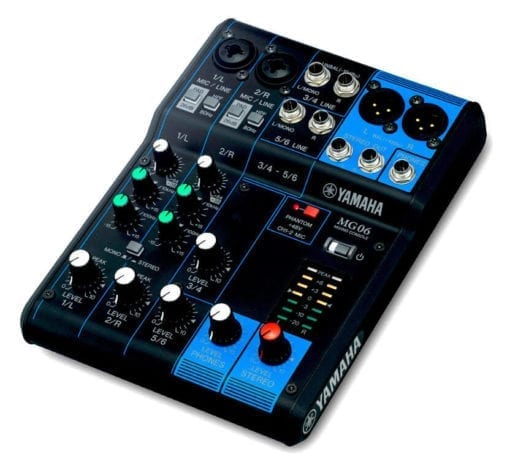

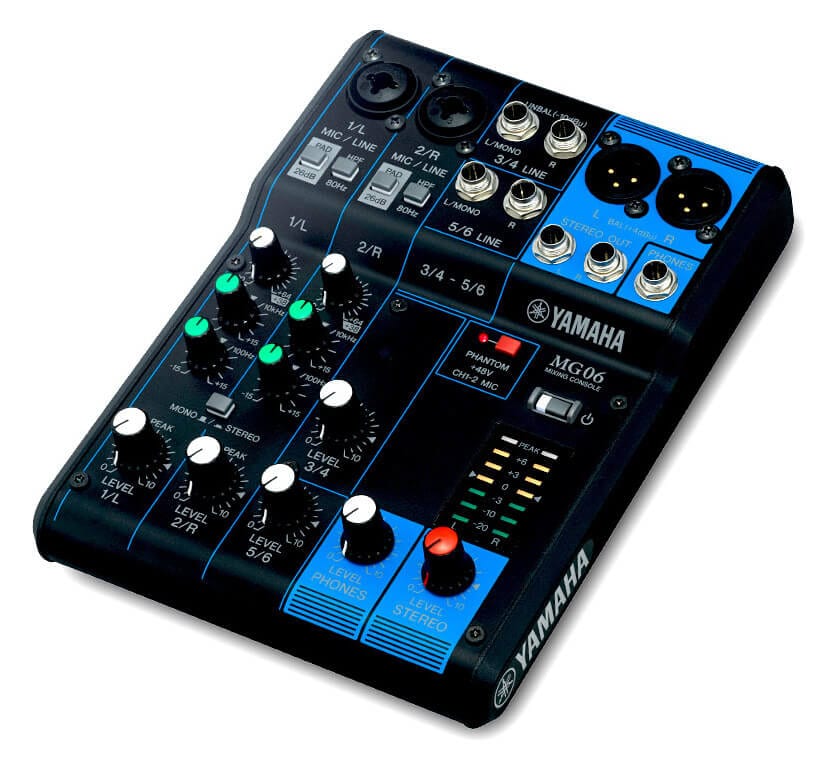

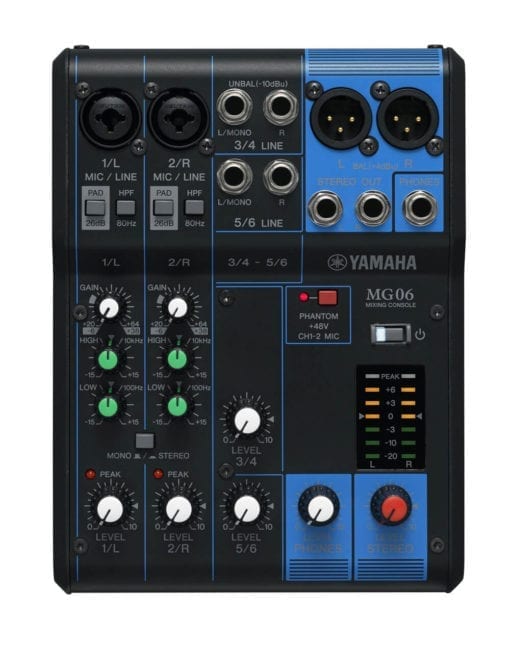

Completely redesigned for the 3rd Generation of MG mixers, the compact MG06 features 2 class leading Class A D-PRE microphone preamps.
The MG06 has the following features:
- 6-Channel Mixing Console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 Stereo Bus
- “D-PRE” mic preamps with an inverted Darlington circuit
- XLR balanced outputs
- PAD switch on mono inputs
- +48V phantom power
- Metal chassis
- Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9″x 2.4″x 7.9″)
- Net Weight: 0.9 kg (1.98 lbs.)
Outline
- I/O Phantom power +48 V
- Input Channels
Mono[MIC/LINE] 2
Stereo[LINE] 2 - Output Channels
STEREO OUT 2
PHONES 1 - Bus Stereo: 1
- Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
General specifications
- Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
- Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) - Crosstalk -88 dB
- Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
- Power consumption 12 W
- Dimensions
W 149 mm (5.9″)
H 62 mm (2.4″)
D 202 mm (7.9″) - Net weight 0.9 kg (1.98 lbs.)
- Accessories
Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications,
Optional Accessory: Mic Stand Adaptor BMS-10A - Others Operating Temperature: 0 to +40˚C
