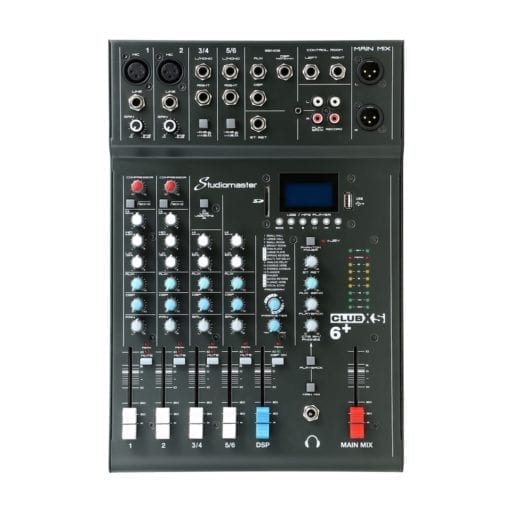

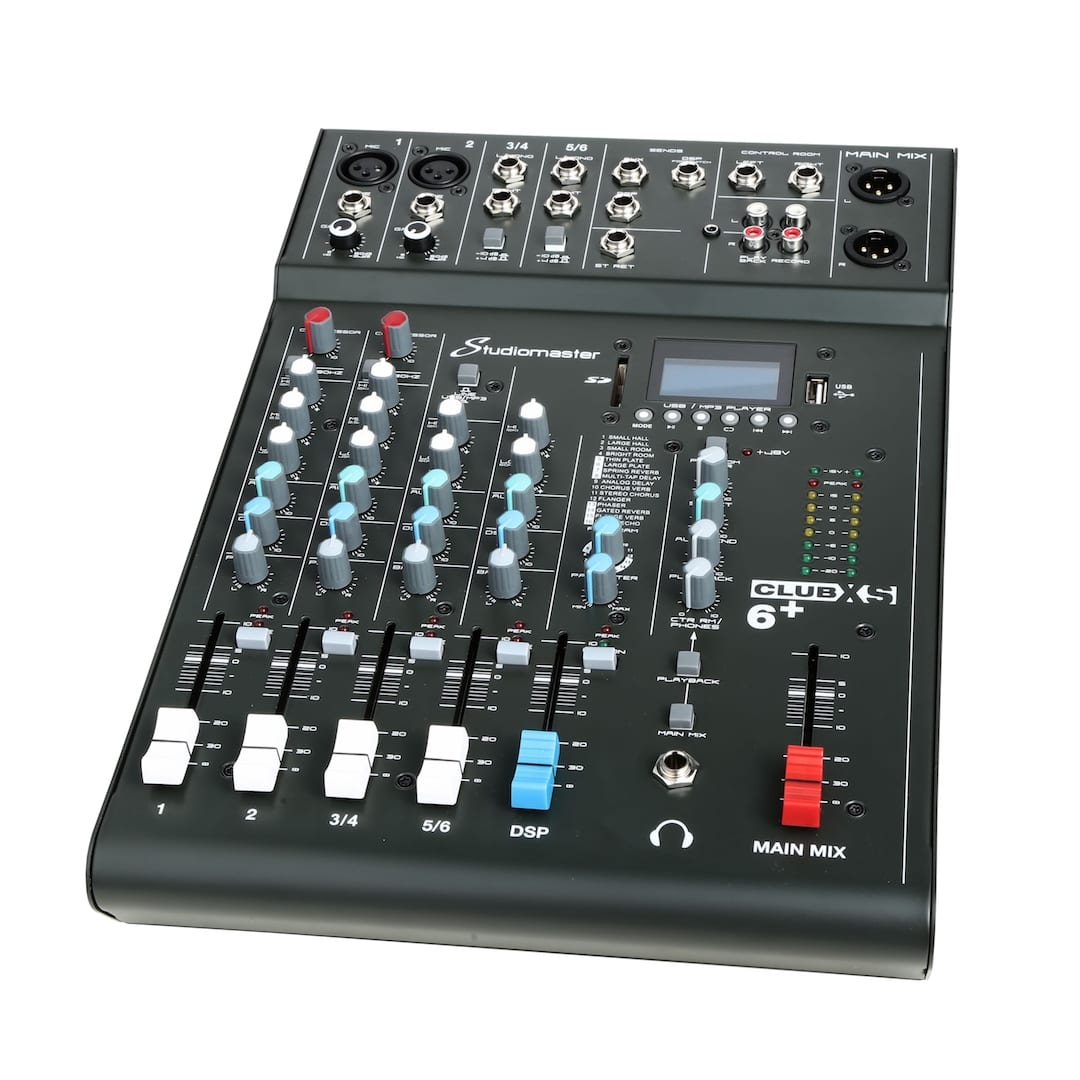

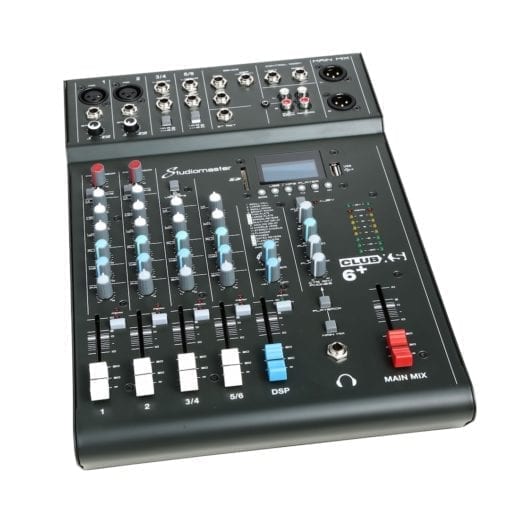

CLUB XS6+
New for 2020, Club XS+ models incorporate all of the great features of the standard Club range, now with the inclusion of a DSP On/Off foot switch socket and an aesthetic overhaul, redesigned control knobs and finished in Studiomaster digital black.
Compact, portable mixing consoles featuring 5 to 16 inputs, Bluetooth connectivity, on-board DSP effects and USB/SD card playback and recording functions. 3 band EQ, 2 auxiliaries, balanced mic/line connectors, compressor control, and a useful mute switch on all Mic and line input channels, and 2 band EQ with 2 auxiliaries for both stereo channels. There are also balanced XLR connectors for the main outputs, jack outputs for auxiliaries and control room, and phono connectors for record and playback.
Ultra compact, light weight, high quality and extremely versatile, the Club XS6+ is the perfect mixer for any live performance and home recording situation .Compact and portable, featuring 3 band EQ, built-in channel compression, DSP effects and a hugely versatile Bluetooth/MP3/USB/SD playback and recording media system.
Available in 5, 6, 8, 10, 12 and 16 input models.
FEATURES
- 6 inputs
- 2 mic channels
- 2 stereo channels
- 16 DSP effects
- Bluetooth
- USB/SD media player
- Footswitch socket
PRODUCT SPECIFICATIONS
Inputs: 6
Mic Inputs: 2
Stereo Inputs: 2
Mic Gain Range: 6dB to 50dB
Line Gain Range: 10dB to 34dB
EIN: -100dB
Frequency Responce: 10Hz – 20kHz (+1/-3dB)
THD Mic Channel: <0.1%
Signal to Noise Ratio: 80dB
Output Levels: Max +26dB (Bal), +20dB (unBal)
EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
USB/SD: MP3 Audio playback
Record: To USB drive or SD card (128kbps mono)
DSP Effects: 16 DSP effects
Power Requirements: 100V – 240V ~
Dimension W*H*D: 250 x 80 x 365 (mm)
Weight: 3.5kg
