Description

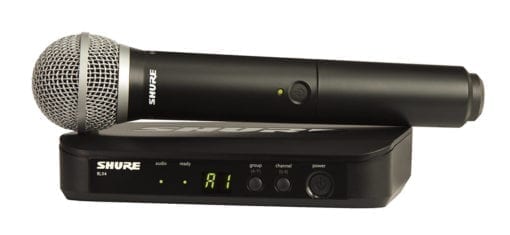

The BLX24/PG58 Handheld Wireless System is part of the BLX wireless systems family.
Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.
Includes BLX4 single-channel receiver, BLX2/PG58 handheld transmitter, microphone clip, power supply, 2 AA batteries, and user guide.
SYSTEM TECHNICAL SPECIFICATIONS
- Compatible systems per frequency band (up to): 12
- Selectable frequencies: Up to 150
- Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
- Audio Reference Companding: No
- Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
- Antenna Options: No
- Receiver Network Ability: No
- PC Control: No
- Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
- Case: No
- Transmitter Display: LED
- Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
- Battery, Endurance: 2AA, up to 14h
- Environment: Small to medium stages
FURTHER TECHNICAL SPECS
- Operating Range: 91 m ( line of sight – actual range depends on RF signal absorption, reflection and interference)
- Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)
- Audio Range: 50–15,000 Hz (dependent on microphone type)
- Transmitter RF Output Power: 10 mW, typical (varies by region)
- Audio Output Connector: XLR and 1/4″ (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4″)
- Battery Life: Up to 14 hours
- Dynamic Range: 100 dB A-weighted
- System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
- Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
- Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
- BLX4: 12–18 V DC at 150 mA, supplied by external power supply
COMPONENT SPECIFICATIONS:

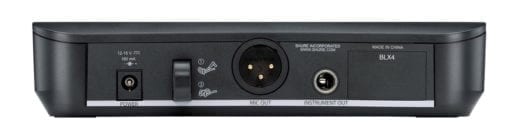

BLX4 RECEIVER
- Output Impedance:
- – XLR connector 200 Ω
- – 6.35 mm (1/4″) connector: 50 Ω
- Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- – XLR connector –27 dBV (into 100 kΩ load)
- – 6.35 mm (1/4″) connector –13 dBV (into 100 kΩ load)
- RF Sensitivity: 105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions: 40 mm X 188 mm X 103 mm (H x W x D)
- Weight: 241 g
- Housing: Molded ABS
- Power Requirements: 12–15 V DC @ 160 mA, supplied by external power supply (tip positive)
BLX2 HANDHELD TRANSMITTER
- Audio Input Level
- – gain 0dB: -20 dBV maximum
- – gain -10dB: -10 dBV maximum
- Gain Adjustment Range: 10 dB
- RF Transmitter Output: 10 mW, typical, varies by region
- Dimensions: 224 mm X 53 mm dia.
- Weight: 218 g (without batteries)
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
Frequency ranges and power output of the transmitter
|
Band |
Range |
Power Output |
|
H8E |
518 to 542 MHz |
10 mW |
|
K3E |
606 to 630 MHz |
10 mW |
|
K14 |
614 to 638 MHz |
10 mW |
|
M17 |
662 to 686 MHz |
10 mW |
|
Q25 |
742 to 766 MHz |
10 mW |
|
R12 |
794 to 806 MHz |
10 mW |
|
S8 |
823 to 832 MHz |
10 mW |
|
T11 |
863 to 865 MHz |
10 mW |
Channel 38 switchover information and helpline 01992 703038
Please note that a valid license is required to operate wireless equipment in Channel 38. Contact JFMG at www.jfmg.co.uk for details.
