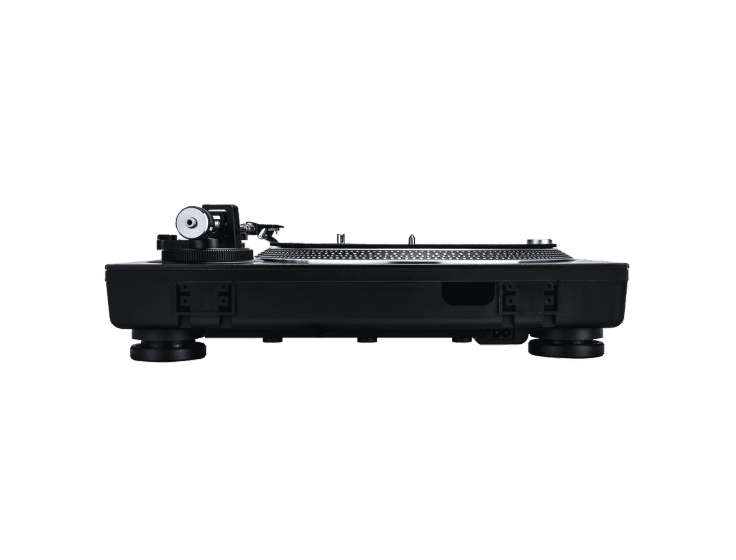

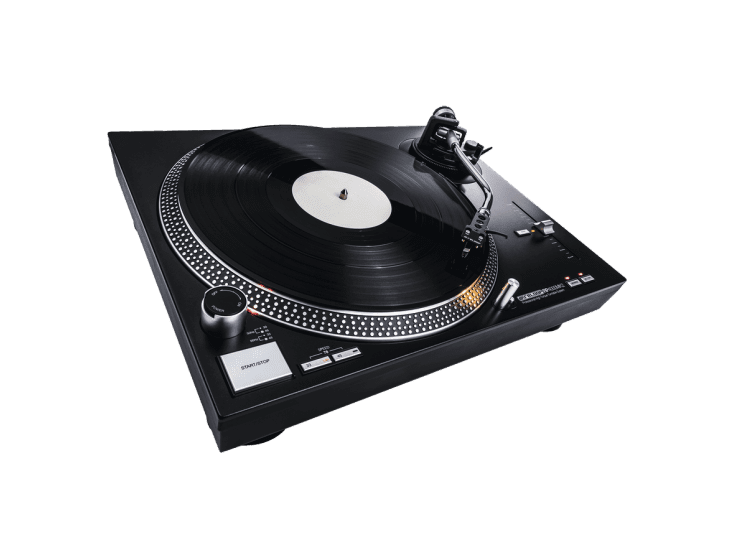

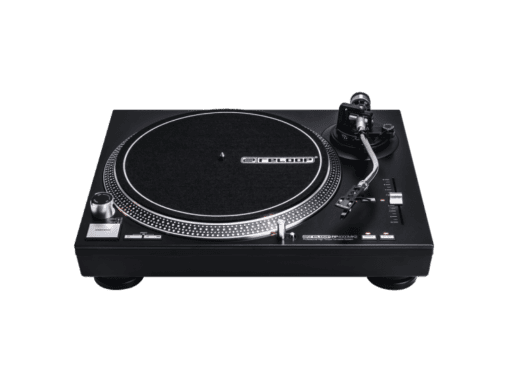

Description
The RP-4000 MK2 is a solid DJ turntable for advanced users. The new RP-4000 MK2 version comes with several improvements, including a newly developed top panel and reworked metallic buttons with enhanced feel as well as a variety of functions.
Features
- NEW in the MK2 version:
- Newly developed top panel and reinforced housing construction
- Reworked metallic buttons with improved feel & tactile response
- Precision Pitch with selectable ranges of +/-8 % & +/-16 %
- Tempo reset (Quartz Lock) feature
- Superior finish in deep black metallic
- Quartz-driven DJ turntable with high-torque direct drive
- Designed for professional use
- Powerful brushless DC motor with more than 1.8 kg/cm torque
- Precise motor control with 3 speeds selectable (33 1/3, 45 & 78 rpm)
- Reverse function: switch for forward/reverse playback
- Precision-engineered die-cast aluminium platter with stable rotation
- Statically balanced s-shaped tone arm with hydraulic lift and anti-skating mechanism
- Universal connection for pick-up systems (SME)
- Extendible needle illumination
- Shock-absorbing feet for vibration isolation
- Sturdy, heavy construction with optimized damping features
- Prepared for dust cover (available as optional accessory)
- Incl. slipmat, removable headshell and ready-mounted OM Black pick-up made by Ortofon
Technical Data
Turntable:
- Type: direct drive turntable
- Drive: quartz-driven high-torque direct drive
- Motor: 8-pol., 3-phase, brushless DC motor
- Turntable speeds: 3 speeds, manual (33 1/3, 45, 78 rpm)
- Starting torque: > 1.8 kg/cm
- Brake time: < 1 sec.
- Start-up / rpm change: < 1 sec.
- Wow and flutter: < 0.2 % WRMS
- Signal-to-noise ratio: > 50 dB (DIN-B)
- Brake system: electronic brake
Platter:
- Material: aluminium die-cast
- Diameter: 332 mm
Tone arm:
- Type: universal, statically balanced, s-shaped
- Effective length: 230.5 mm
- Overhang: 16 mm
- Tracking angle error: < 3°
- Applicable pick-up weight: 3.5 – 8.5 g (incl. headshell 13 – 18 g)
- Anti-skating range: 0 – 7 g
Connections:
- 1x PHONO out (gold-plated), 1x GND
General:
- Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
- Power consumption: 12 W
- Dimensions: 450 (w) x 352 (d) x 144 (h) mm
- Weight: appr. 9.8 kg
Included accessories:
- Platter, OM Black pick-up system (by Ortofon), headshell, slipmat, counterweight, power cord, instruction manual
