Description
KEY FEATURES
Multi-channel UHF PLL receiver and 2 bodypack transmitters
Large backlit display with multiple status indicators
ACT infrared pairing of bodypacks to receiver
2 x balanced XLR outputs
1 x unbalanced 6.35mm jack mixed output
Includes receiver, 2 x bodypacks, 2 x headset mics,
2 x lavalier/lapel mics 2 x guitar/instrument leads,
plus batteries, PSU and audio cable
High efficiency battery consumption design
2 x adjustable/removable high gain antenna
Two systems can be connected for 19 inch rackmount
Working distance: 50 meters
Continuous usage: 5 hours
SPECIFICATIONS
Frequency response: 40Hz-15Hz±3dB
Power Consumption: 5w
Audio Output Level: 400mV

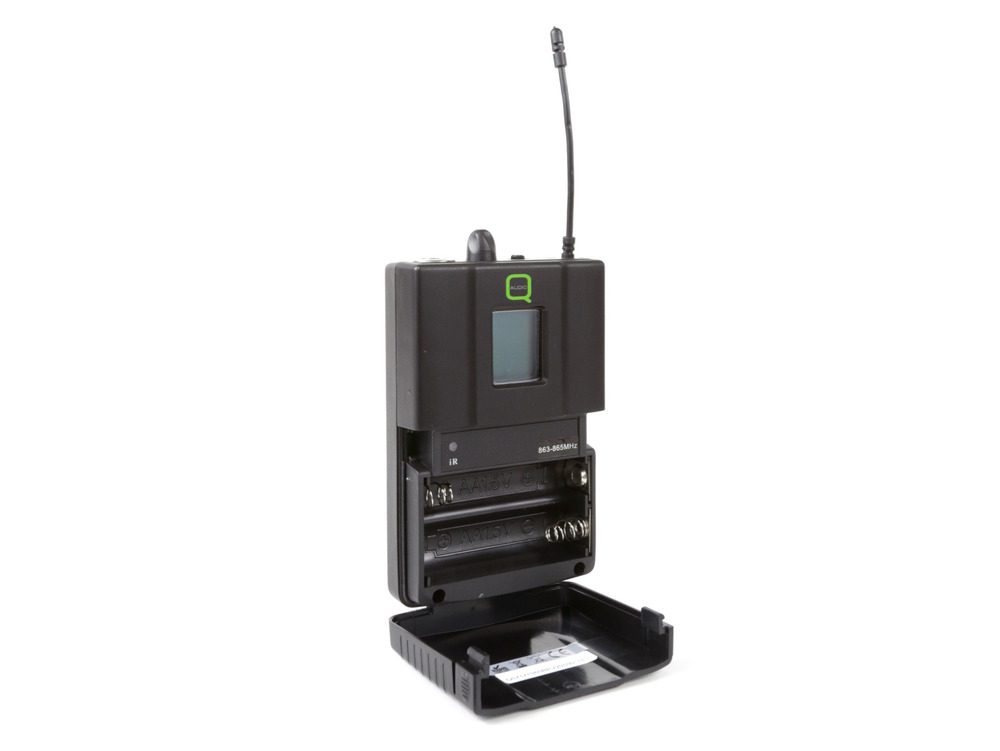

Battery: 3V (2 x 1.5V AA batteries)
Deviation: ±25KHz
Power Supply: DC 17V/300mA
Frequency Range: UHF 863.0 to 865.0 MHz
Dynamic range: >90dB
Signal To Noise Ratio: >90dB
Total harmonic distortion: <0.5%
PRODUCT DESCRIPTION

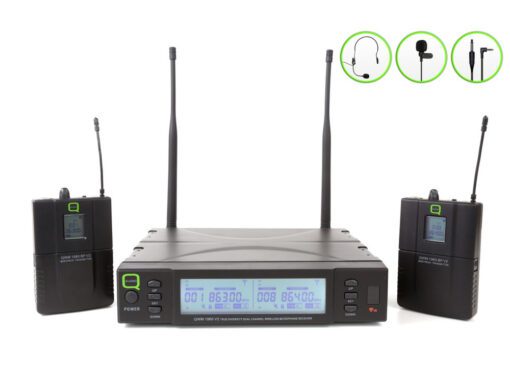

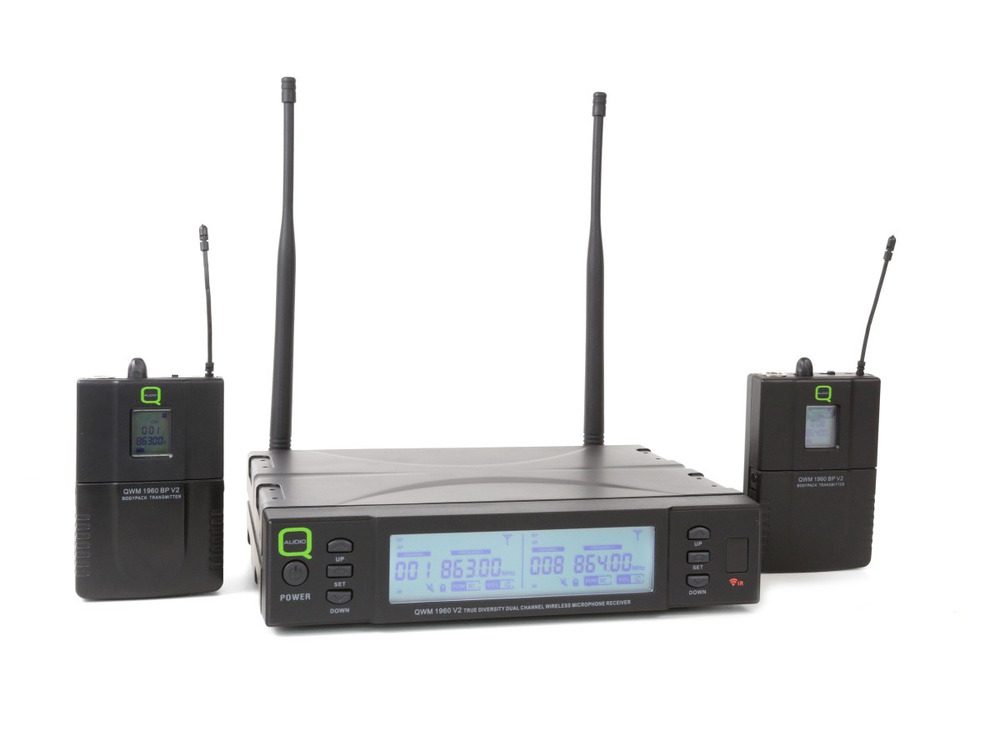

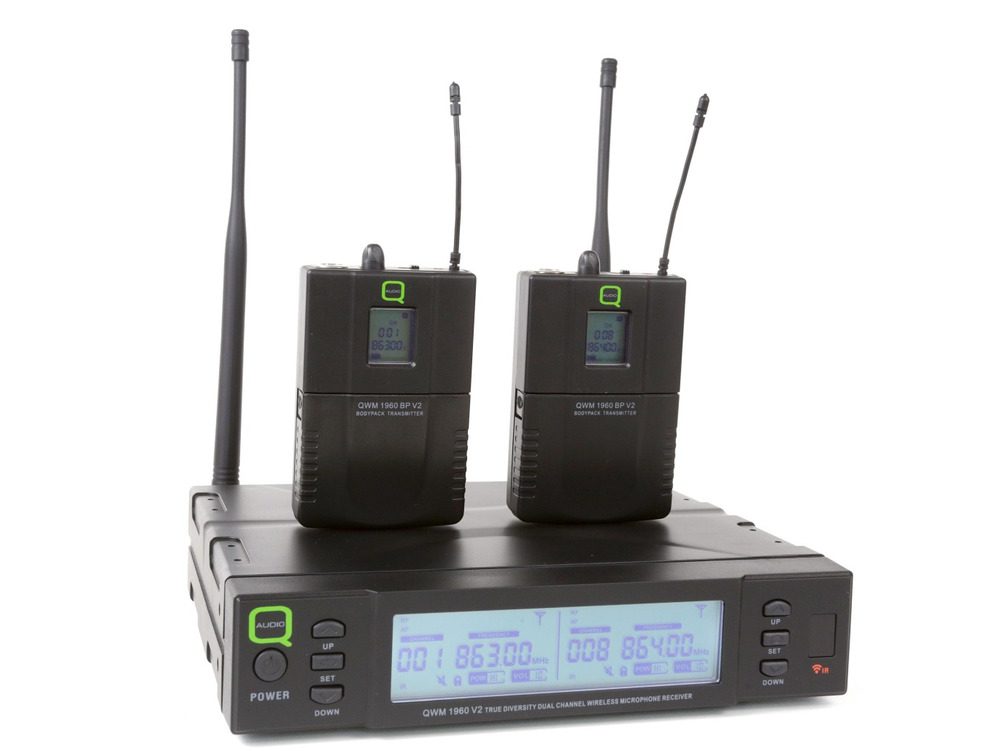

1x Receiver

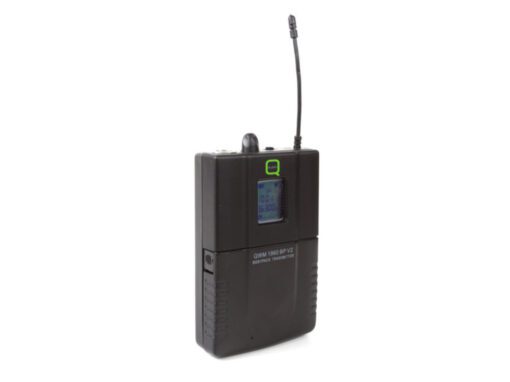

2x Beltpack Transmitters
2x Headset Microphones
Wireless Channel/Frequency options:
– Channel 38 (606-614 MHz)
– Channel 70 (863-865 MHz)
