Description
PRODUCT DESCRIPTION

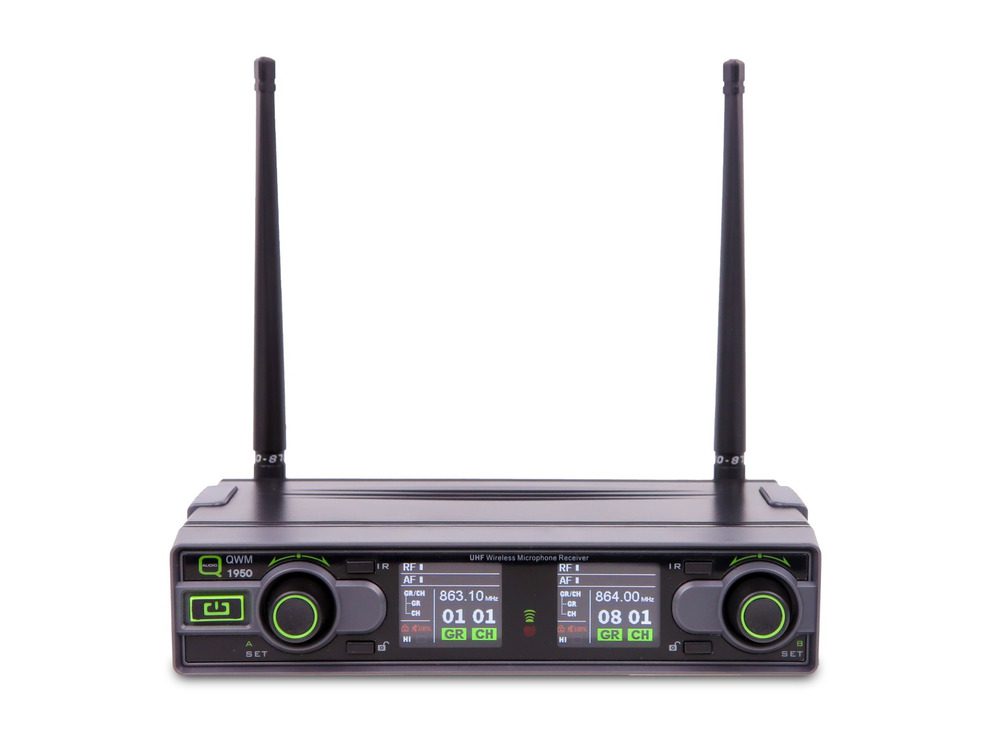

1x Receiver
1x Handheld Transmitter

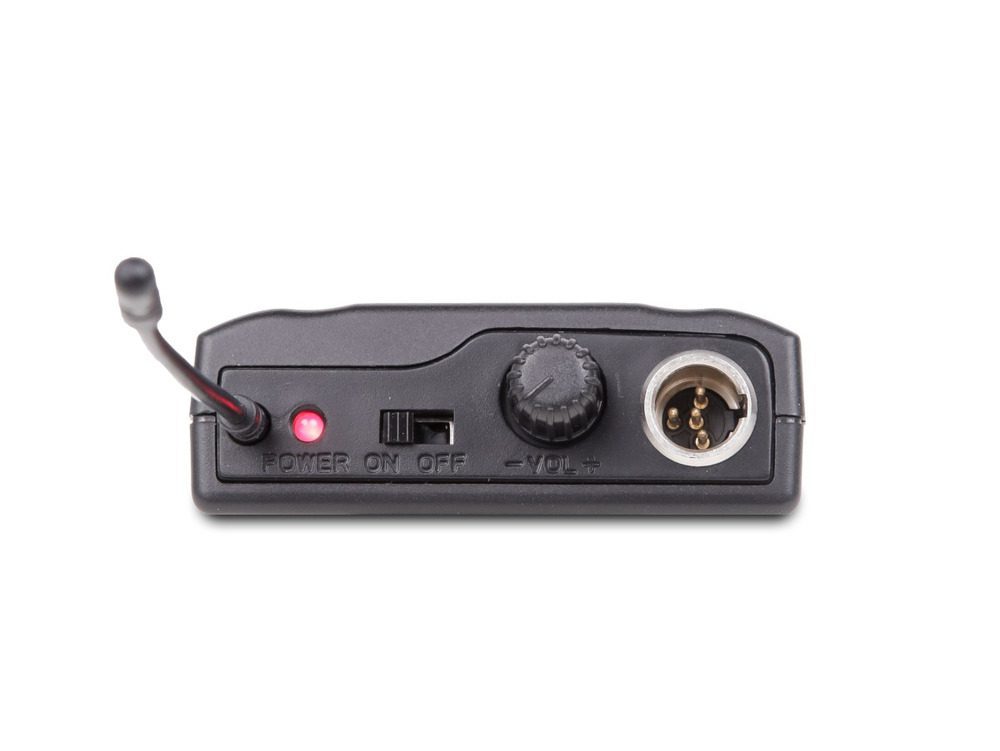

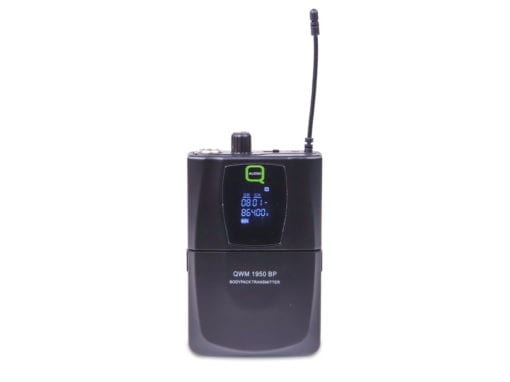

1x Beltpack Transmitter
1x Headworn Microphone
1x Lapel Microphone
1x Guitar Cable
Wireless Channel/Frequency options:
– Channel 38 (606.5-613.5 MHz)
– Channel 70 (863.1-864.9 MHz)
KEY FEATURES

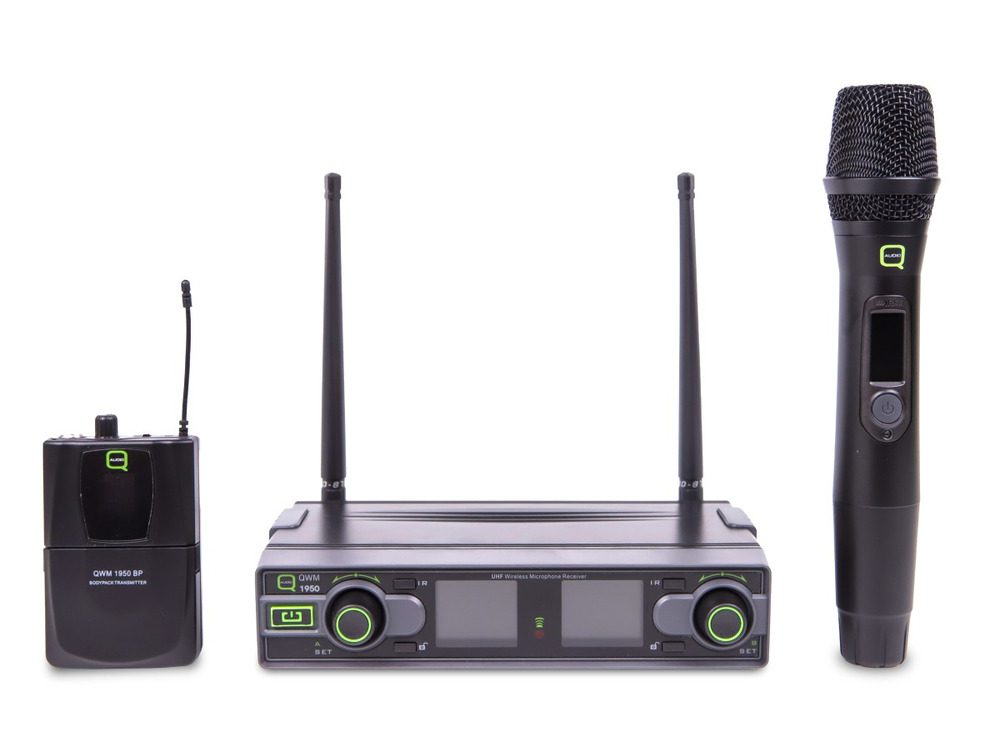

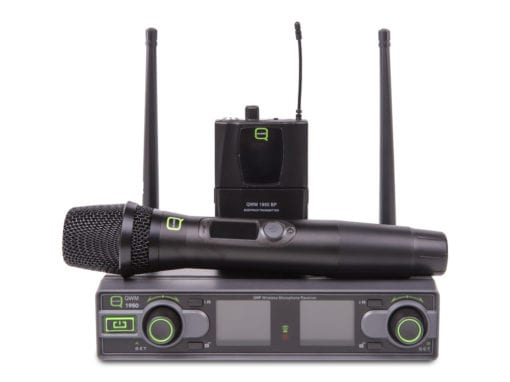

QWM 1950 HH+BP is a UHF dual channel wireless microphone system, supplied with 1x Handheld Transmitter, 1x Beltpack Transmitter, 1x Headworn Microphone, 1x Lapel Microphone, 1x Guitar Cable
Multi-Channel UHF Wireless System
Channel 38 (606.5 – 613.5 MHz) or Channel 70 (863.1 – 864.9 MHz) Options
Two Transmitter Options (Dual HH or HH + BP)
IR Transmitter Syncing
Auto Frequency Scan Feature

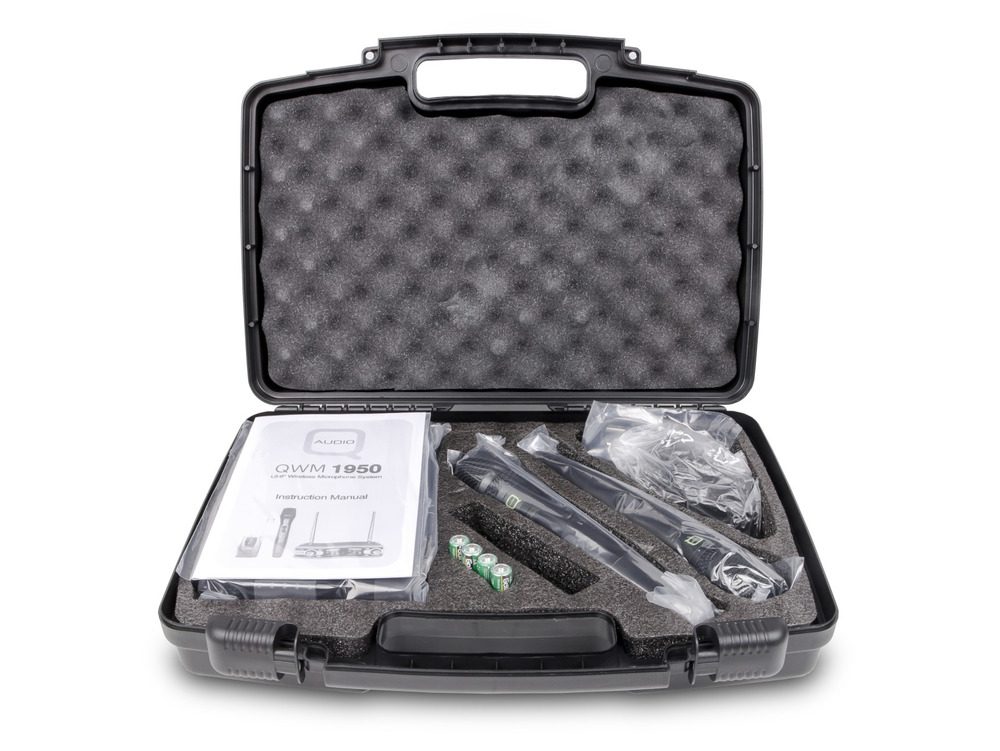

Supplied In A Rugged ABS Carry Case
Rack Mountable using the QWM1960 Rack Kits (Antennas on the QWM1950 ARE NOT removable)
SPECIFICATIONS
Frequency response: 30Hz – 20kHz ±2dB
Battery: 2×1.5V AA batteries
Bandwidth: 2MHz or 8MHz
Power Supply: DC 12V 1A
Frequency Range: 863.1 – 864.9 MHz (Channel 70)
Audio Outputs: 1x Mixed Unbalanced 6.3mm Jack, 2x Balanced XLR
Dynamic range: 90dB
Battery Life: >6h
Signal To Noise Ratio: 90dB
Distortion: <0.5%
Total harmonic distortion: <-50dBc
