Description

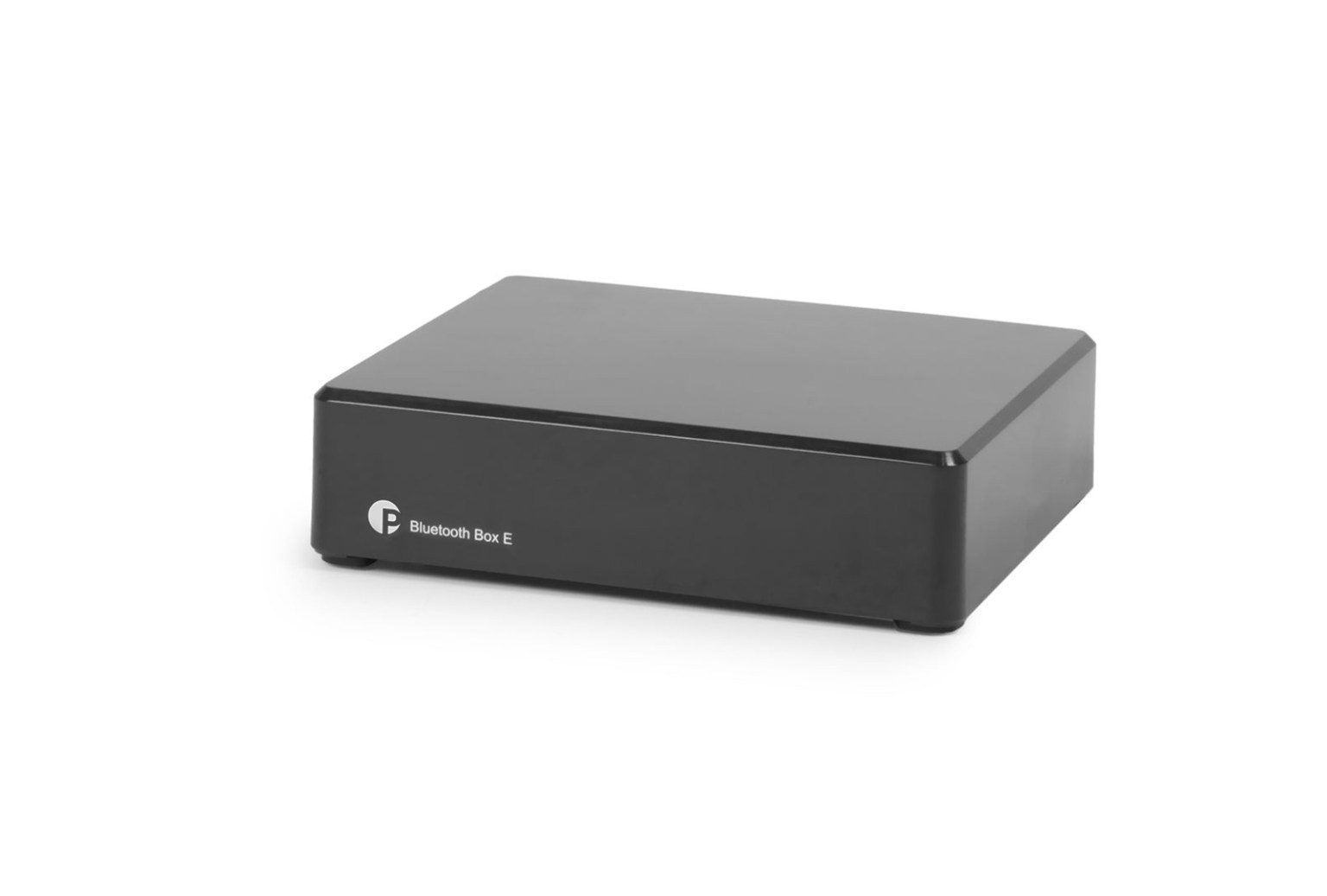

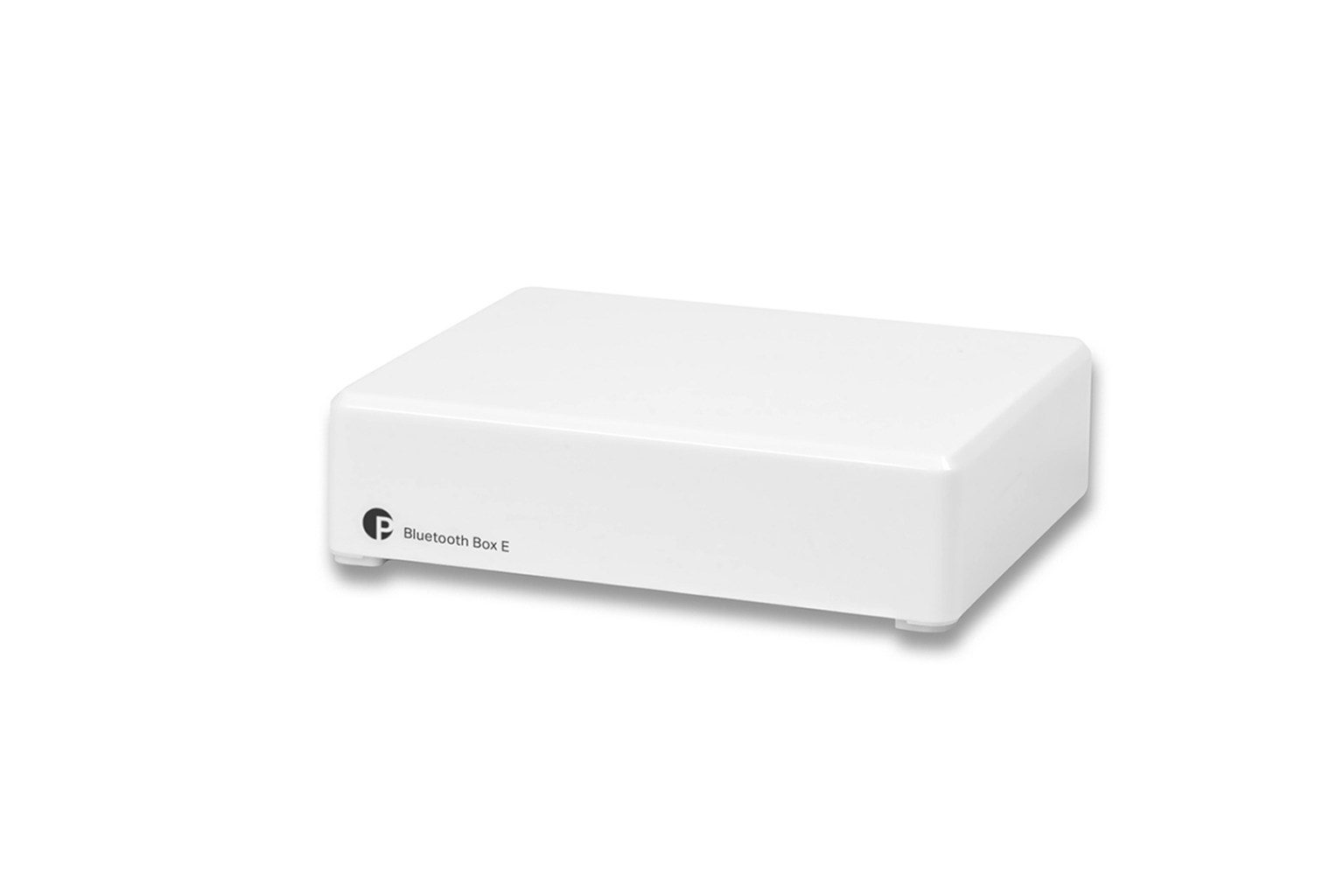

Bluetooth Box E: Wireless streaming at an absolute bargain price!
Smartphones and tablets offer the possibility to stream music wireless via Bluetooth. The Bluetooth Box E is the cost-effective solution to use this possibility in your own hifi system. Not only standard SBC codecs are supported, but also audiophile aptX with almost CDquality can be received. Pairing of mobile devices with the Bluetooth Box E is done fast and playback works reliably within a distance up to 10m with direct visibility. Up to 8 different smartphones and tablets are memorized. Analogue and digital connections to an amplifier or an external D/A converter are provided for ultimate flexibility.
Features
- Wireless music streaming with almost CD-quality
- Bluetooth 2.1 + EDR
- Supports aptX & SBC codecs
- Easy to install and use
- Fast auto pairing (3 to 5 seconds)
- Up to 8 different Bluetooth sources are memorized
- Works within a range of approximately 10 meters

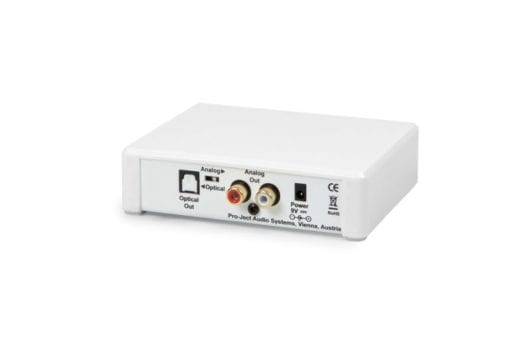

- RCA analogue and Toslink digital outputs (switchable)
- Outboard power supply included
- Black or White casing
Technical Specifications
| Effective working range | up to 10m (direct visibility) |
| Bluetooth profile | A2DP |
| Supported codecs | aptX, SBC |
| Frequency | 2402 ~ 2480 Mhz |
| Sensitivity | – 84 dBm |
| Maximum received signal at 0.1% BER | >= -10dBm |
| Maximum level of intermodulation interference | >= -30dBm |
| Spurious output level | -156 dBm / Hz |
| Audio Output Level (nominal) | 2 Vrms |
| Frequency response | 20 Hz – 20 kHz |
| Analogue output | RCA Stereo |
| Digital output | optical S/PDIF (Toslink) |
| Outboard power supply | 9 V/ 300 mA DC; 220 – 240 V, 50 Hz |
| Standby power consumption | < 1 watts |
| Power consumption | 100 mA/ 9V DC |
| Dimension W x H x D (D with sockets) | 120 x 32 x 100mm (106 mm) |
| Weight | 250 g without power supply |
