Description
IPR2™ power amplifiers, designed for years of reliable, flawless operation under rigorous use. The groundbreaking IPR2 7500 utilizes an advanced design that allows Peavey engineers to dramatically reduce weight while increasing output power, reliability and thermal efficiency. The IPR2 7500 amplifier is designed with a resonant switch-mode power supply and a high-speed class D topology that yields the highest audio resolution and efficiency available. This revolutionary amplifier offers the sonic superiority and unsurpassed reliability for which Peavey is famous, in an extremely efficient and lightweight design. Advanced technology and extensive protection circuitry allow operation with greater efficiency into difficult loads and power conditions. The DDT™ (Distortion Detection Technique) circuitry ensures trouble-free operation into loads as low as 2 ohms. DDT protects drivers and ensures that sonic integrity is maintained, even in extreme overload conditions. The IPR2 7500’s high-efficiency design allows the amplifier to operate at very low temperatures, and does not require massive heat sinks to cool.

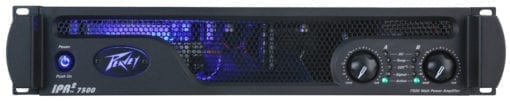

IPR2™ 7500 Specification Sheet
Rated Watts 2ch x 2 ohms: 4750 watts 20ms repetitive burst / 3750 watts 1% THD both channels driven @ 1kHz.
Rated Watts 2ch x 4 ohms: 2800 watts 20ms repetitive burst / 2450 watts 1% THD / 2020 watts 0.15% THD, both channels driven @ 1kHz.
Rated Watts 2ch x 8 ohms: 1550 watts 20ms repetitive burst / 1425 watts 1% THD / 1200 watts 0.15% THD, both channels driven @ 1kHz.
Minimum Impedance: 2 ohms
Maximum RMS Voltage Swing: 124 volts
Frequency Response: 20Hz – 25kHz; +0dB, -3dB
20Hz – 20kHz 2ch x 2 ohms: <0.5% @ 3280 watts 20Hz to 4kHz, decreasing to 3000 watts @ 20kHz, both channels driven.
20Hz – 20kHz 2ch x 4 ohms: <0.15% @ 2000 watts 20Hz to 20kHz, both channels driven.
20Hz – 20kHz 2ch x 8 ohms: <0.15% @ 1200 watts 20Hz to 20kHz, both channels driven.
Input CMRR: > – 75dB @ 1 kHz.
Voltage Gain: x 40 (+32dB)
Crossover: 100Hz switchable 2nd order high pass and 3rd low pass per channel.
Crosstalk: > -85dB @ 1kHz @ 1000 watts power @ 8 ohms.
Hum and Noise: > -106dB, “A” weighted referenced to rated power @ 4 ohms.
Slew Rate: > 12V/μs
Damping Factor: (8 ohms) > 200:1 @ 20Hz – 1kHz @ 8 ohms
Input Sensitivity: 2.25 volts +/- 3% for 1kHz 4 ohm rated power, 2.195 volts +/- 3% for 1kHz 2 ohm rated power
Input Impedance: 20 kilohms, balanced and 10 kilohms unbalanced.
Current Draw @ 1/8 in VA (watts): 2210 (1440) @ 2 ohms, 1550 (950) @ 4 ohms, 982 (560) @ 8 ohms
Current Draw @ 1/3 in VA (watts): 4260 (3150) @ 2 ohm, 3120 (2160) @ 4 ohms, 1890 (1200) @ 8 ohms
Idle Consumption: 250VA, 120 watts.
Cooling: 3 temperature dependent variable speed fans.
Controls: 2 front panel attenuators, crossover select switch for HPF, Normal and LPF
Indicator LEDs: Five LED indicators per channel: Active, Signal, DDT, Temperature and DC
Protection: Thermal, DC, subsonic, incorrect loads, under and over voltage
Connectors: Inputs: Dual combination 1/4” XLR, Outputs: Dual 1/4” thru, one 2-pin & one 4 pin twist-lock connector
Construction: 0.062” thick aluminum
Dimensions: 3.5”x19”x 17” behind front panel + 0.6” for handle
Net Weight: 6.61kg (14.6lbs.*)
Gross Weight: 8.34kg (18.4lbs.)
Rated power readings made with BW: 20 Hz to 22 kHz. All power measurements made @ 120 VAC or 240VAC.
2 ohm steady state sine wave power is time limited by circuit breaker.
Bridge operation is not possible.
*Net Weight does not include power cord.
