Description

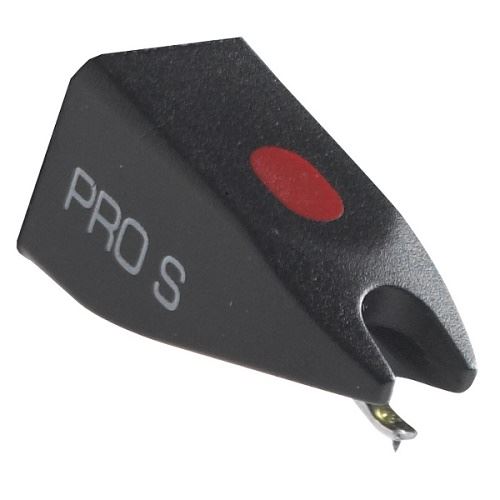

Pro S Replacement stylus
The Pro S entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment.
The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.
No matter what the application, the Pro S provides remarkable versatility for virtually any setting.
The sound quality is absolutely not to worry about.
The Pro S is a consistent performer and a fine all-arounder!
Pro S Stylus Technical data
Output voltage at 1000Hz, 5cm/sec. – 5 mV
Channel balance at 1kHz – 2 dB
Channel separation at 1kHz – 20 dB
Channel separation at 15 kHz – 15 dB
Frequency response – 20-18.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommended tracking force – 70 μm
Compliance, dynamic lateral – 7 μm/m N
Stylus type – Spherical
Stylus tip radius – R 18 μm
Tracking force range – 3.0-5.0 g (30-50 mN)
Tracking force recommended – 4.0 g (40 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 750 Ohm
Internal inductance – 450 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 200-600 pF
Concorde / OM cartridge weight – 18.5 g / 5.0 g
Compatible with cartridges – Concorde Pro S and OM Pro S
