Description

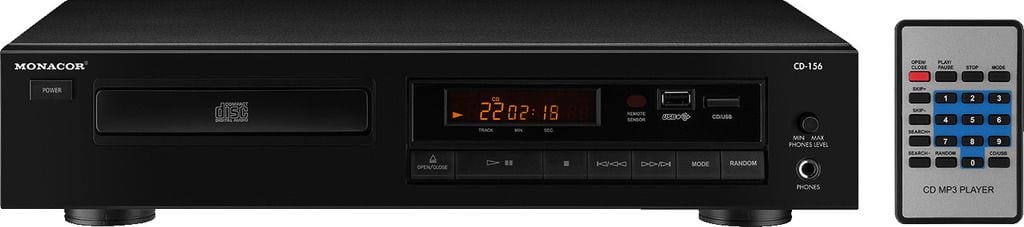

CD-156 Stereo CD and MP3 player, with USB 2.0 interface, for hi-fi and PA applications.
- USB storage media can be connected directly (e.g. USB hard disk, USB flash drive)
- Anti-shock system
- Repeat function (repeat 1, repeat all), random play, standard operating functions
- Adjustable headphone output
- Supplied with infrared remote control with direct track selection
- 482Â mm (19″) rack installation with supplied mounting brackets, 2Â RS
- Audio CD/CD-R/MP3 CD
CD-156 Features
| Description | Stereo CD and MP3 player |
| Media | CD, MP3, USB |
| Frequency range | 20-20,000 Hz |
| THD | < 0.1% |
| Channel separation | > 80 dB |
| Dynamic range | > 90 dB |
| S/N ratio | > 80 dB |
| Output, analogue | 2 V |
| Output, digital, Upp | – |
| Power supply | Àú 230 V/50 Hz/25 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 25 VA |
| Power consumption, standby | – |
| Operating voltage (possible alternative) | – |
| Power supply (possible alternative) | – |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 420 x 90 x 285 mm, 2 RS(w/o mounting brackets) |
| Dim., player mech. | – |
| Dim., control panel | – |
| Weight | 3.66 kg |
| Connections | 1 x RCA L/R,1 x 6.3 mm jack (headphones) |
