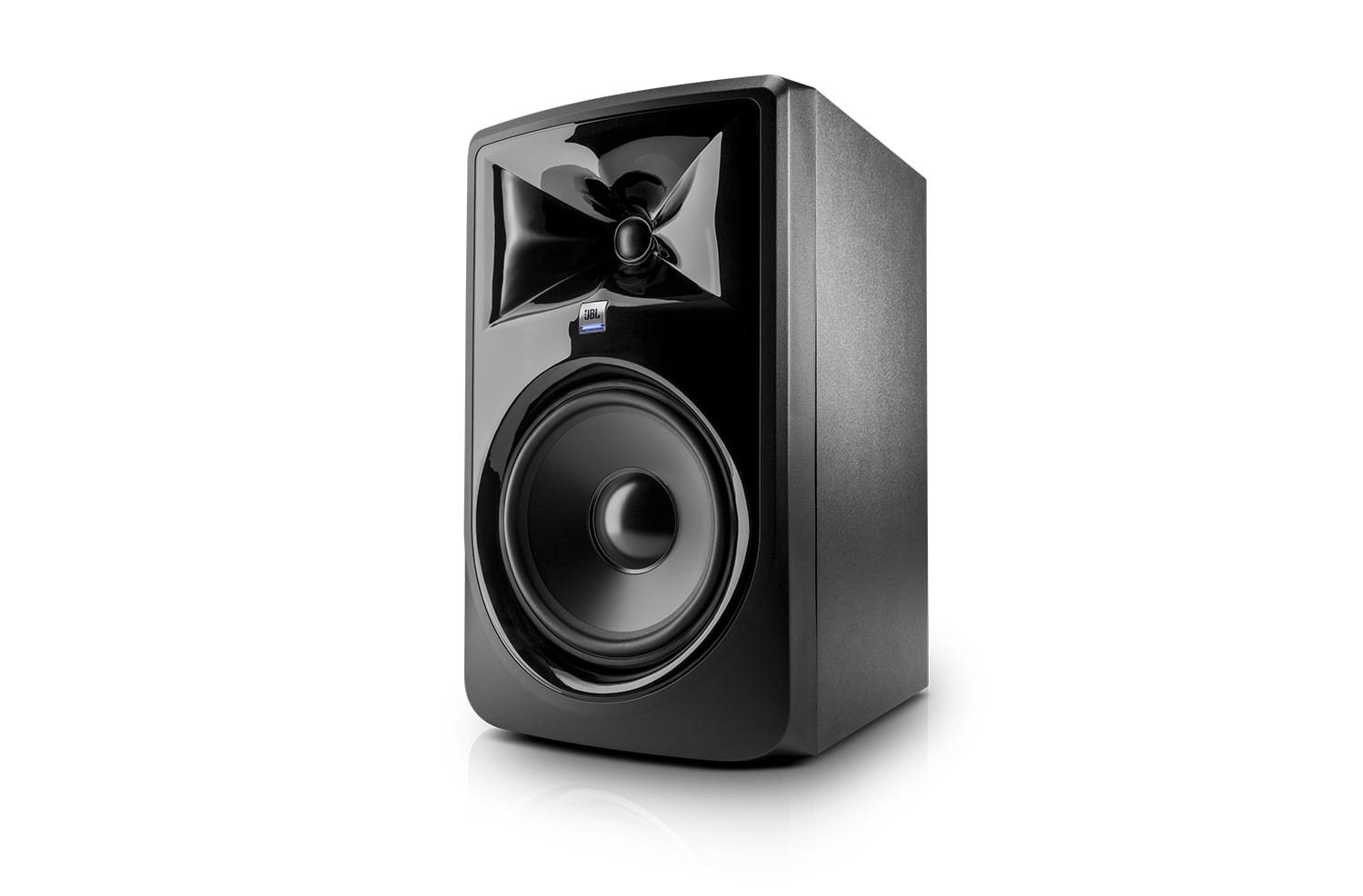

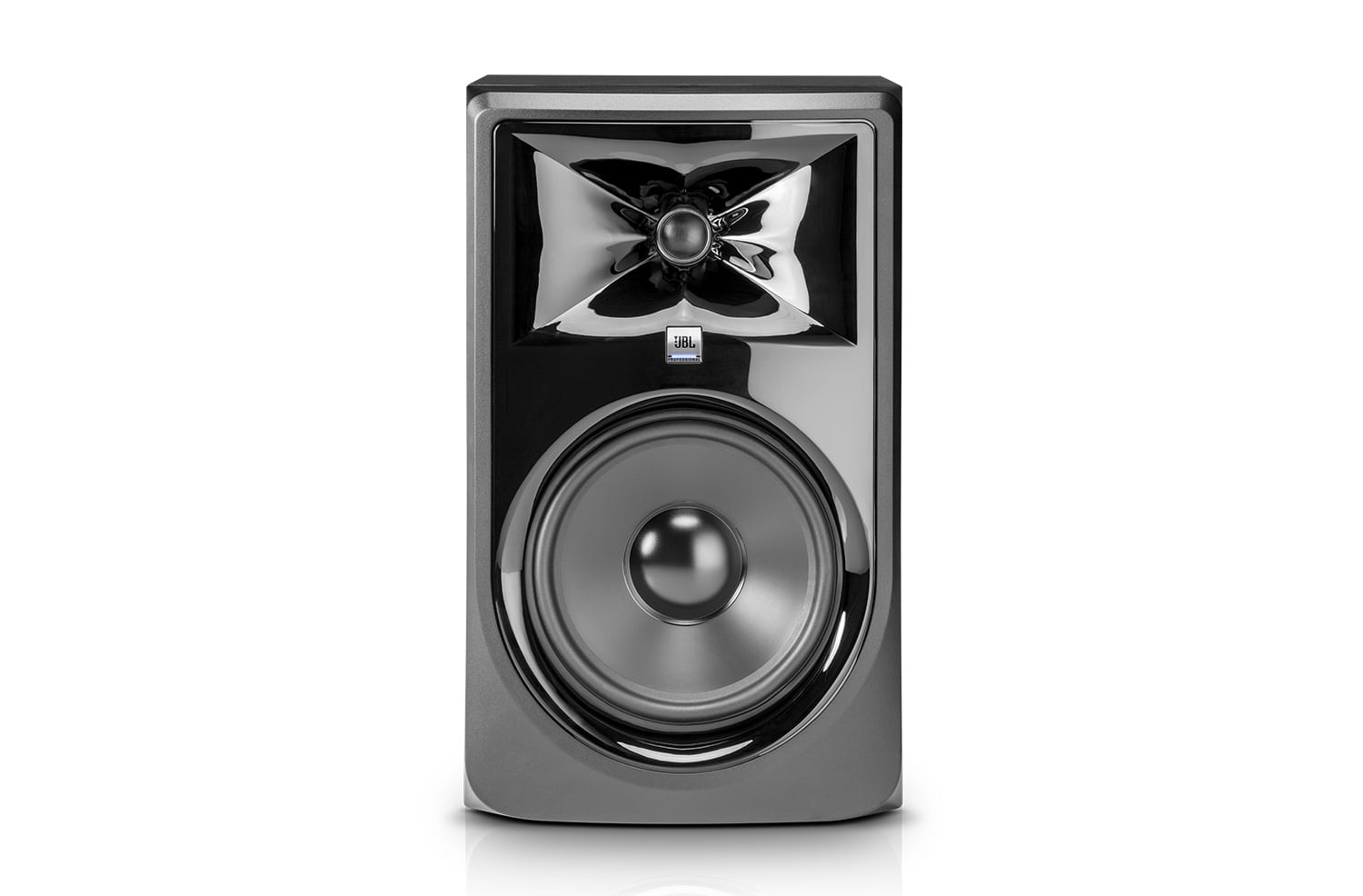

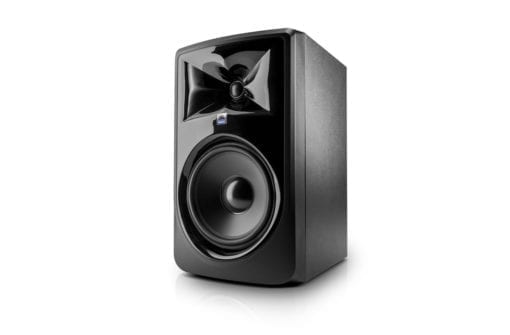

JBL 308P MKII Overview
The next-generation JBL 308P MkII powered studio monitor makes legendary JBL performance available to every studio. So with the revolutionary JBL Image Control Waveguide and refined transducers, as a result JBL 308P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 308P MkII delivers outstanding performance and an enjoyable mix experience, but at an accessible price.
JBL 308P MKII Features
- Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
- Next-generation JBL transducers for optimized transient response and improved linearity
- Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
- Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
- New Boundary EQ settings compensate for low frequency variants introduced by the environment
- HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

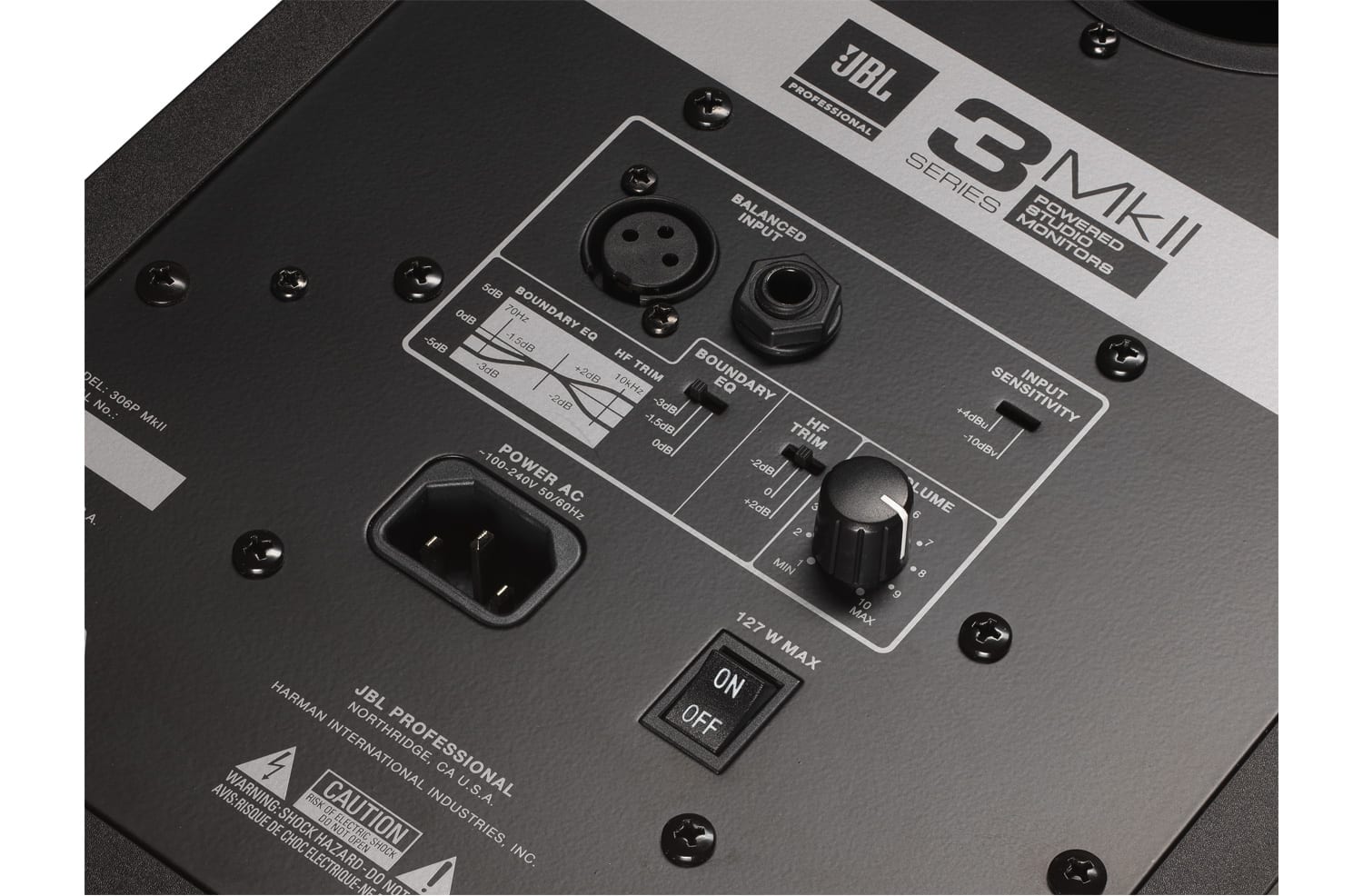

- Flexible connectivity with balanced XLR and 1/4″ TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
- Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
- Strenuous JBL 100-hour full-power test ensures years of reliability
- Sleek but modern design provides a visual upgrade to any studio
JBL 308P MKII Specifications
| LF Driver | 203mm (8″) |
| HF DRIVER SIZE | 25mm (1″) |
| HF DRIVER TYPE | Soft dome |
| Crossover | 1800Hz 4th order acoustic Linkwitz-Riley |
| OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT |  |
| INPUT SENSITIVITY (-10dBV INPUT) | 92dB / 1m |
| Power Configuration | Bi-amplified |
| HF DRIVER POWER AMP | 56W, Class-D |
| LF Driver Power Handling | 56W, Class-D |
| Frequency Response (±3 dB) | 45Hz – 20kHz |
| Frequency Response (-10dB) | 37Hz – 24kHz |
| LOW FREQUENCY EXTENSION (-10dB) | 37Hz |
| Maximum Continuous SPL | 102dB |
| Maximum Peak SPL | 112dB |
| MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) | +6dBV / +20.3dBu |
| SYSTEM DISTORTION CRITERIA | <10% THD at maximum output with full compressor / limiter engagement |
| ELECTRICAL DISTORTION CRITERIA | 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output |
| Signal to Noise Ratio | 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output |
| Coverage Angle | 120° x 90° |
| Input Connectors | 1 x XLR female, 1 x TRS female, balanced |
| HF TRIM CONTROL | -2dB, 0dB, +2dB |
| BOUNDARY EQ | LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB |
| AC INPUT VOLTAGE | 100 – 240VAC (±10%), 50 / 60Hz |
| ENCLOSURE TYPE | Ported |
| Enclosure | 15mm MDF |
| ENCLOSURE FINISH | Matte black PVC |
| BAFFLE CONSTRUCTION | Injection-molded structural ABS |
| CABINET DIMENSIONS (H x W x D) | 419 x 254 x 308mm (16.5″ x 10″ x 12.1″) |
| DISPLAY CARTON (H x W x D) | 473 x 312 x 358mm (18.6″ x 12.3″ x 14″) |
| SHIPPING CARTON (H x W x D) | 491 x 326 x 372mm (19.3″ x 12.8″ x 14.6″) |
| Net Weight (each) | 8.1 kg (17.87 lbs) |
| SHIPPING GROSS WEIGHT | 9.4 kg (20.73 lbs) |
