Description

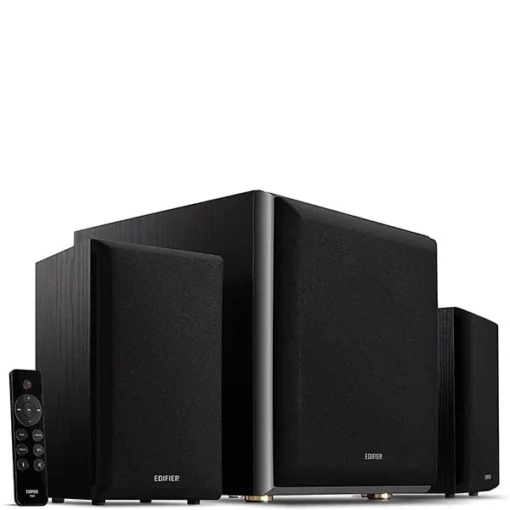

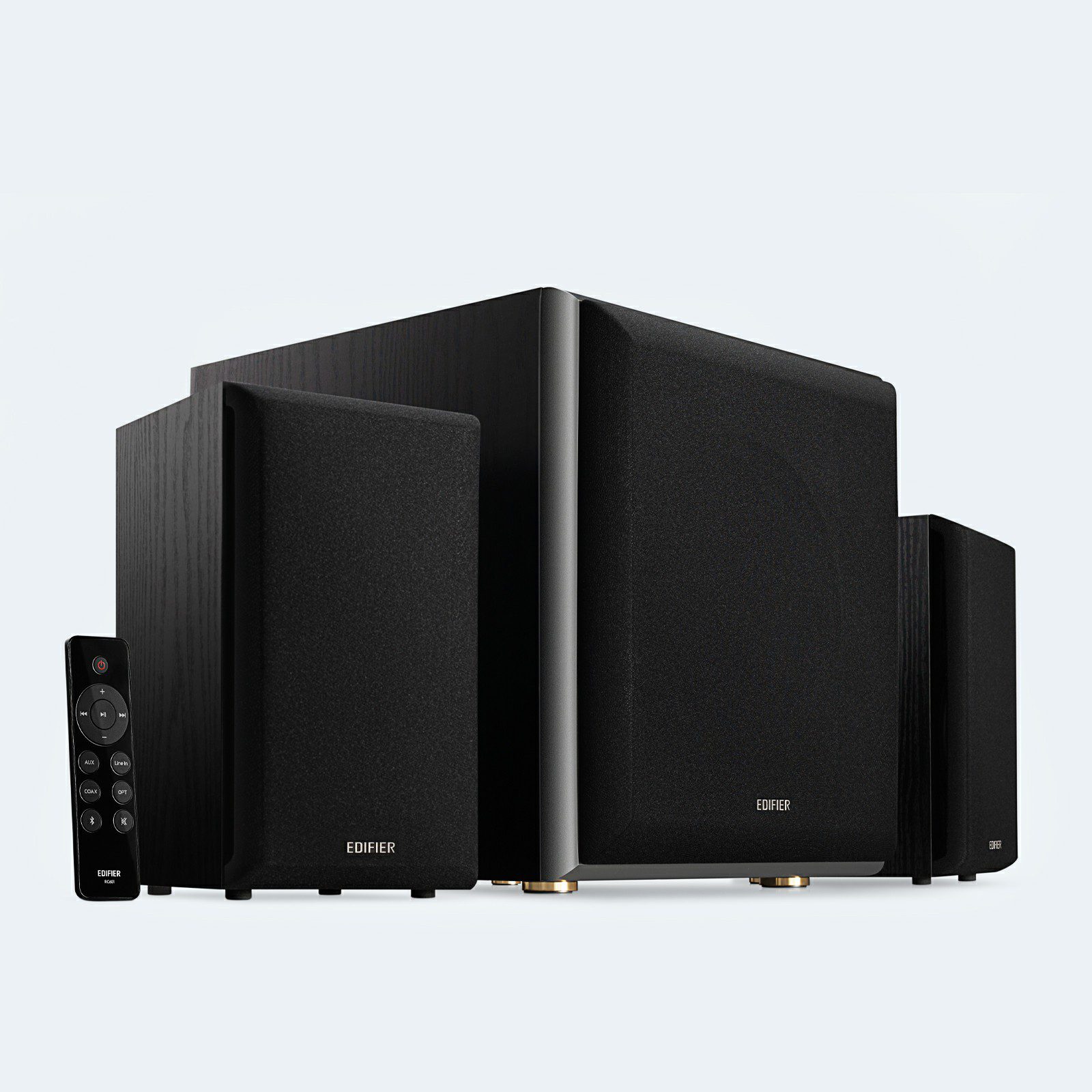

M601DB
Quality Sound Within Reach
- 110W RMS output power
- 0.5” silk dome tweeters (10W), 3.5″ paper cone diaphragm mid-bass drivers (10W * 2), and 8″ paper cone diaphragm subwoofer (70W * 2)
- Class-D amplifier system with DSP
- Quality wooden enclosure
- Calibrated flared bass reflex port
- High-quality Bluetooth transmission with Qualcomm® aptX™
- Rich connectivity
- Easy control

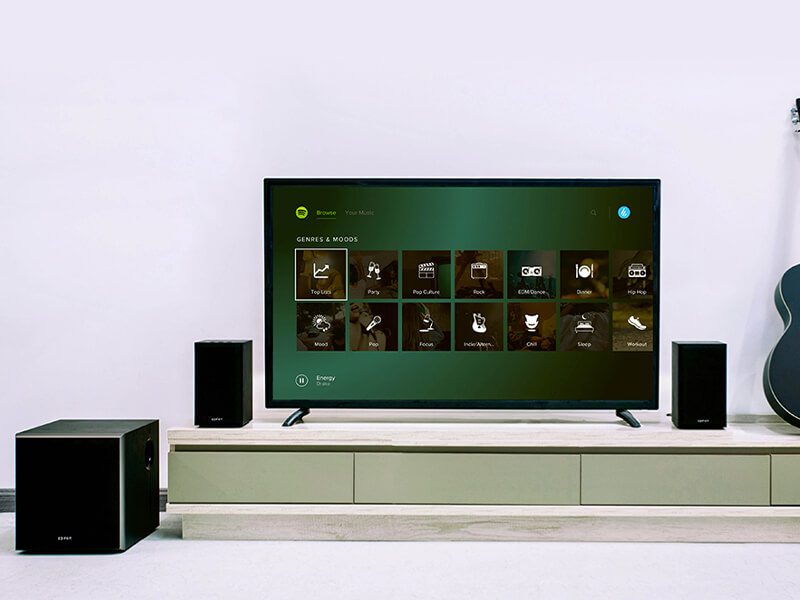

Designed for Sound and More
With the classical and luxurious design, it is not just for catching your friends’ eyes, but also for high quality sound reproduction. All-wooden cabinets of the subwoofer and satellite speakers complement any style of your room’s decorate, moreover, minimizing acoustic resonance and reducing distortion.

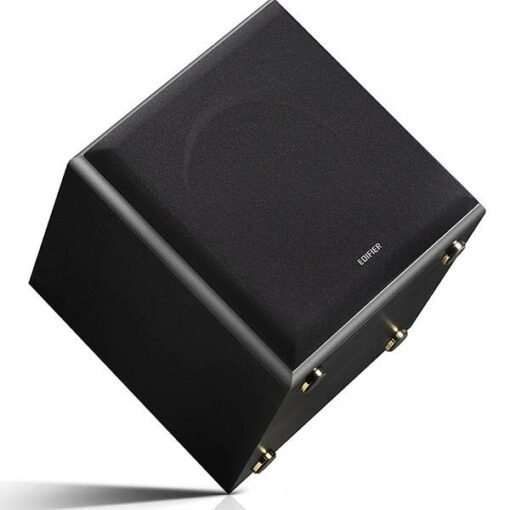

Wireless Subwoofer for
Powerful Bass
The 8″ bass driver of subwoofer, benefiting from the long-stroke design, can reproduce the bass with the frequency down to 50Hz. The powerful bass amplifier can generate the output power up to 70 watts (RMS). The flared bass reflex portis calibrated to make the bass more powerful. Start a concertalbum, your favorite game or a historical movie, to feel the warmth or rocking of deep bass.

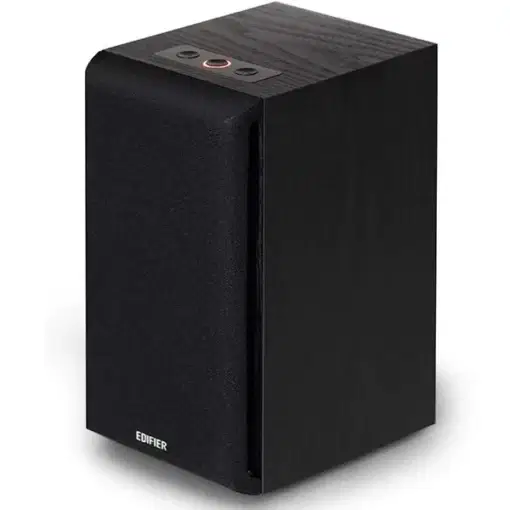

Full-bodied Mid s and Crisp Highs
The 3.5″ mid-bass drivers reprproduce full-bodied and rich mids The 0.5″ silk dome tweeters are finely tuned for the precise reproduction of high pitches, from which the trebles sound crisp and bright.
Class-D DigitalAmplifier
The DSP chipset precisely divides the signals into highs. mids and lows. With three independent ways, the Class-D digital amplifier distributes enhanced audio signals of different frequency bands to target drivers for accurate reproduction.

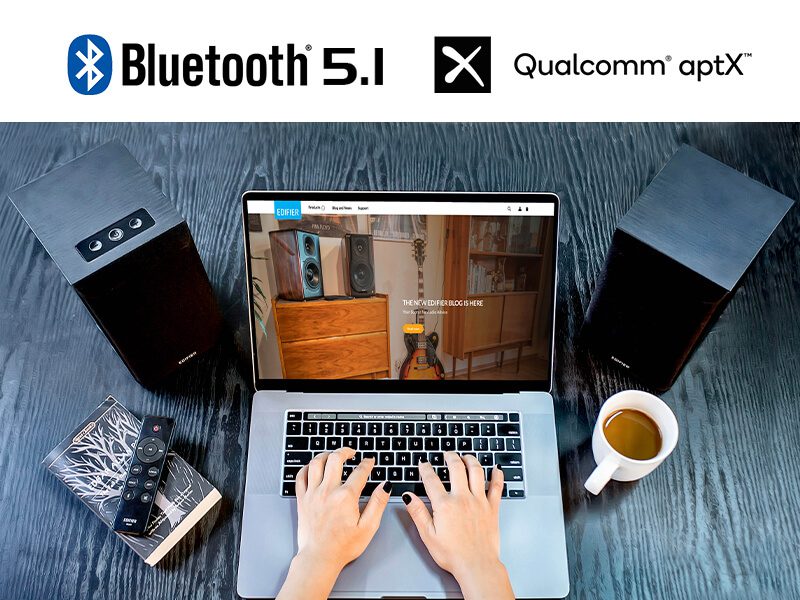

Bluetooth Connectivity for
Seamless Audio Streaming
Bluetooth V5.1 features strong resolution, stable transmissionlow power consumption, and wide purpose of use, delivering high-quality audio experience.

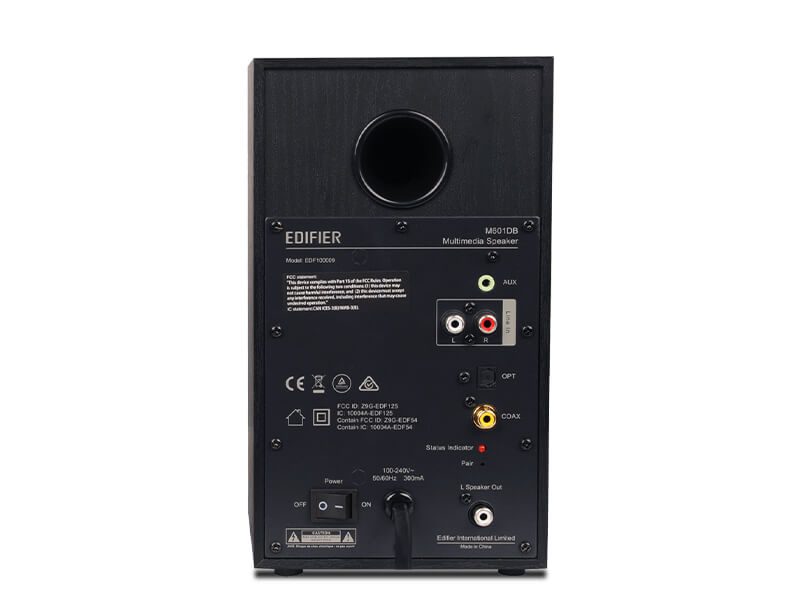

Rich Connectivity
Multiple interfaces are available for the connection to different audio sources. Enjoy the music from RCA, OPT, COAX, or AUX, just as you like. The OPT and COAX sockets support the input of high quality audio signals with a sampling rate of 44.1kHz / 48kHz.

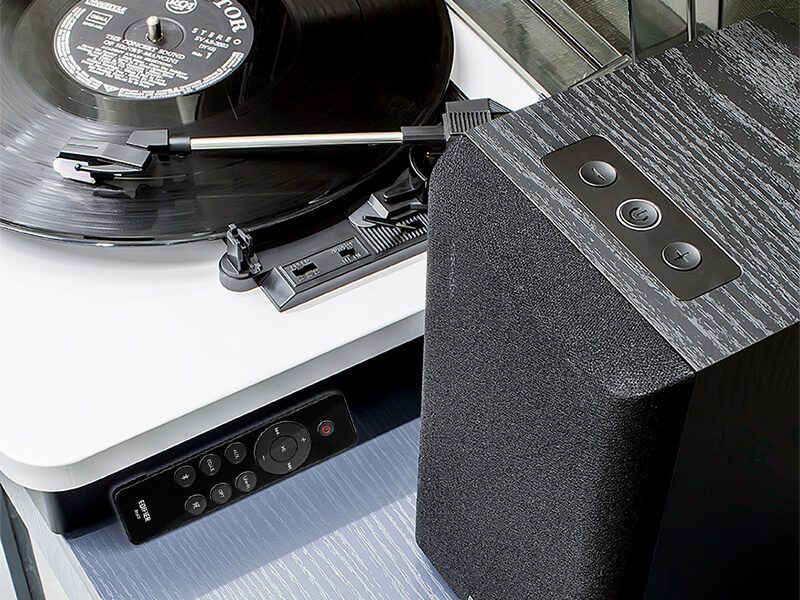

Simple Control
With top-mounted buttons and the remote controleasily operate the product and enjoy full functions
Specifications
- V5.1
- SBC, aptX
- Line In, AUX, Optical, Coaxial, Bluetooth
- R/L: 140Hz-20kHz;
SW: 50Hz-170Hz
- AUX: R/L: 450±50mV;
SW: 250±20mV;
Line in: R/L: 550±50mV;
SW: 250±20mV;
Optical/Coazial:
R/L: 400±50mFFs;
SW: 250±20mFFs;
Bluetooth:
R/L: 500±50mFFs;
SW: 250±20mFFs
- 110W (R/L:20W+20W SW:70W)
- R/L: ≥85dB(A);
SW: ≥75dB(A)
- ≤25dB(A)
