Description
Active Crossover – 2 / 3 Way

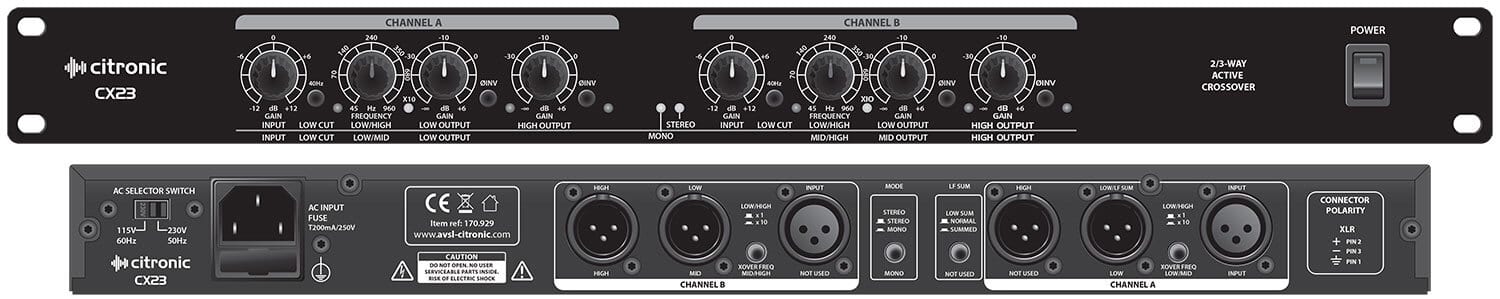

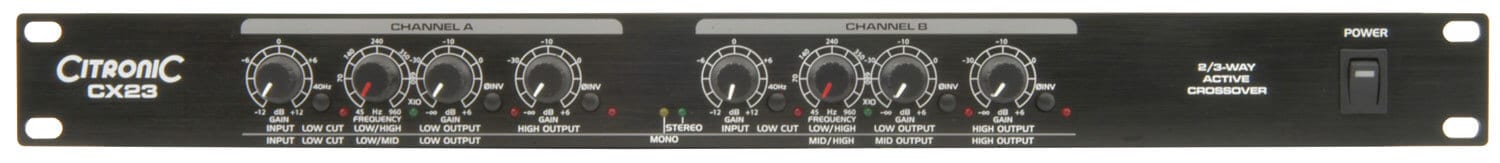

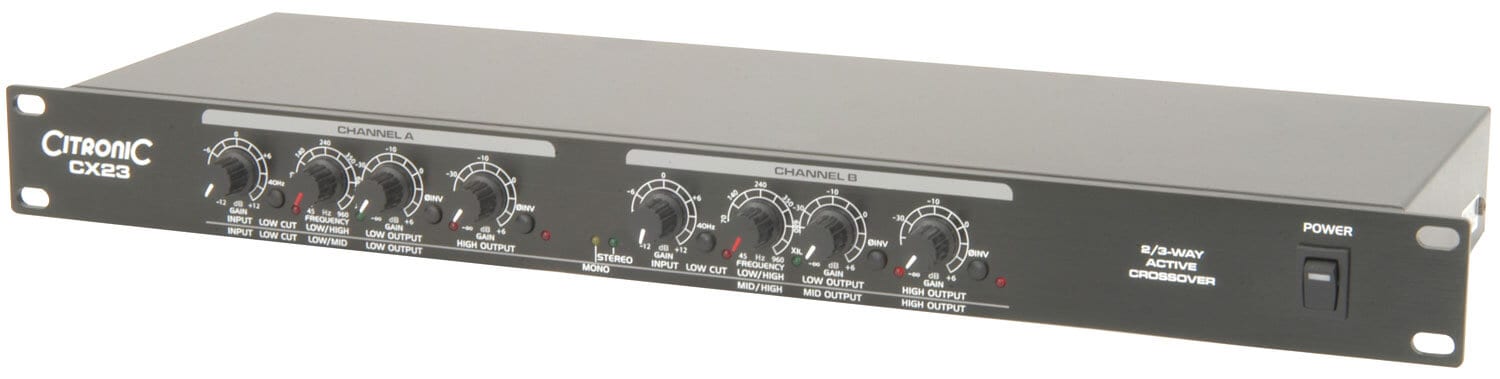

The CX23 is a 2-way stereo or 3-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.
- 2-way stereo, 3-way mono crossover
- 19″ rack mountable
- Butterworth filters – 18dB/octave
- Continuously adjustable cutoff frequencies
- 40Hz ultra-low frequency cut
- Phase invert function

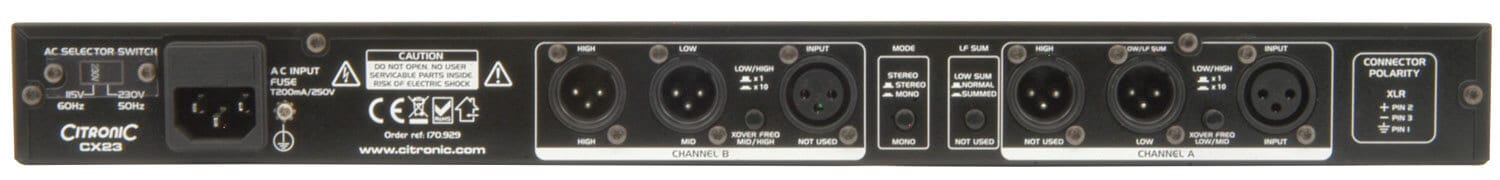

- Inputs and outputs via XLR
Specification
- Power supply: 115/230Vac, 50/60Hz (IEC)
- Input impedance : balanced: 40k ohms
- Input impedance : unbalanced: 20k ohms
- Output impedance: 220 ohms
- Crossover ranges : stereo: 50Hz-5kHz;750Hz-7.5kHz
- Crossover ranges : mono: 50Hz-5kHz;750Hz-7.5kHz; 2kHz-20kHz
- Filter slope: 18dB/octave
- Frequency response: 20Hz-25kHz +0/-1dB
- Signal to noise ratio: >90dB
- THD: 0.006%
- Dimensions: 482 x 44 x 170mm
- Weight: 2.5Kg
