Description
Dual 31-band Graphic EQ

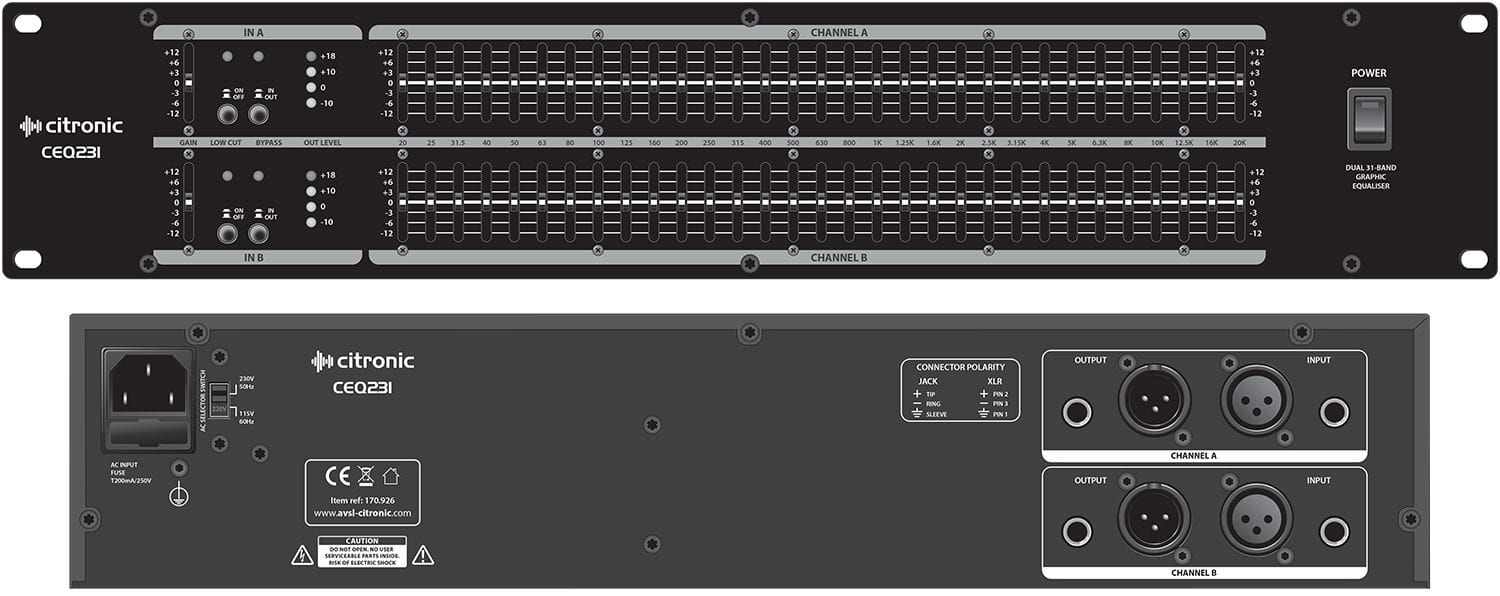

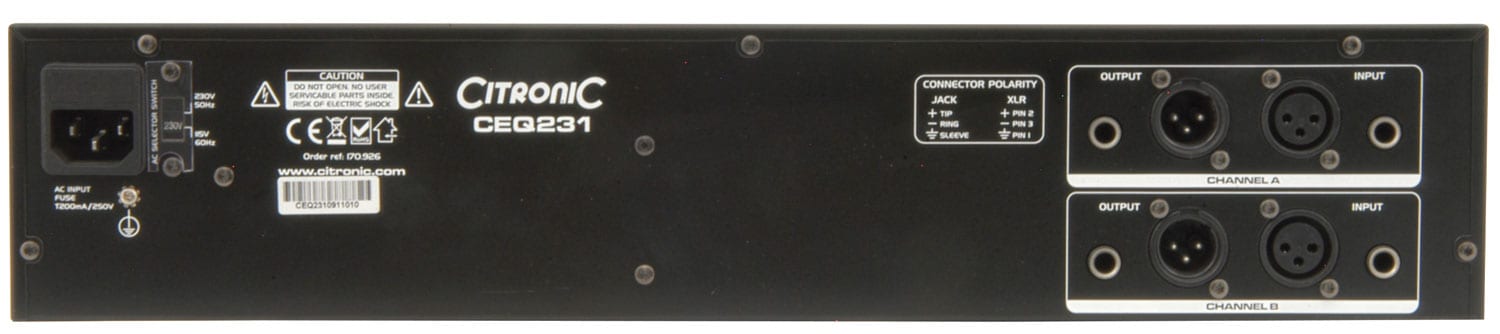

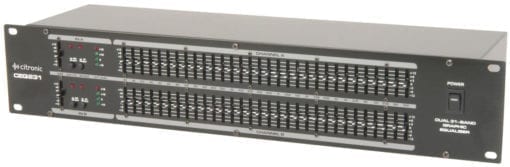

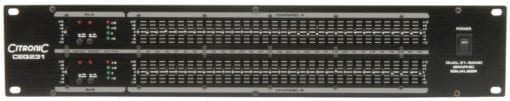

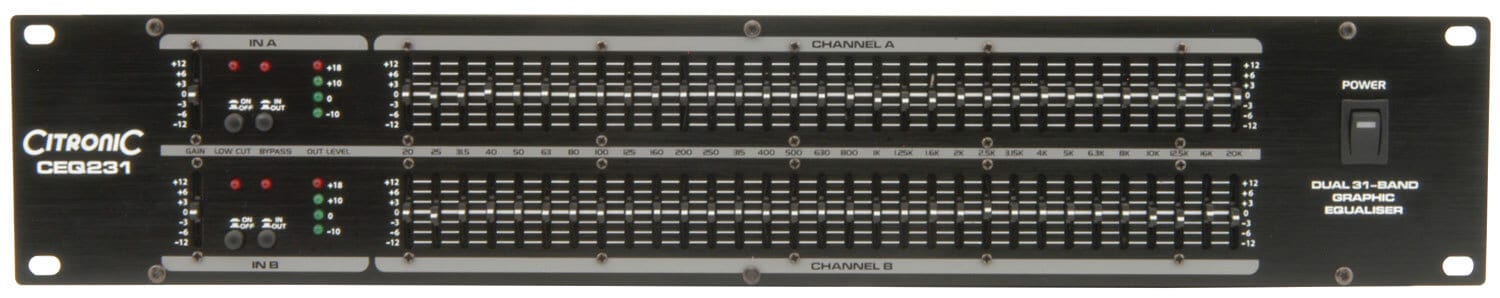

The CEQ231 is a 19″ 2U rack mounted dual 31-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 20Hz to 20kHz for ultimate EQ control.
- 2 x 31-band 1/3 octave ISO spacing
- RF filtered servo-balanced inputs
- Constant Q each band
- Bypass switch for EQ comparison
- Low-cut switch each channel
- Gain control each channel
- LED VU meters
- 19″ rackmount 2U
Specification
- Power supply: 115/230Vac, 50/60Hz (IEC)
- Frequency response: 20Hz-20kHz
- Input impedance : balanced: 40k ohms
- Input impedance : unbalanced: 20k ohms
- Output impedance : bal/unbal: 330 ohms
- Channel separation: >50dB
- Signal to noise ratio: >102dB
- THD: 0.005%
- Dimensions: 482 x 88 x 139mm
- Weight: 3.3kg
