Description

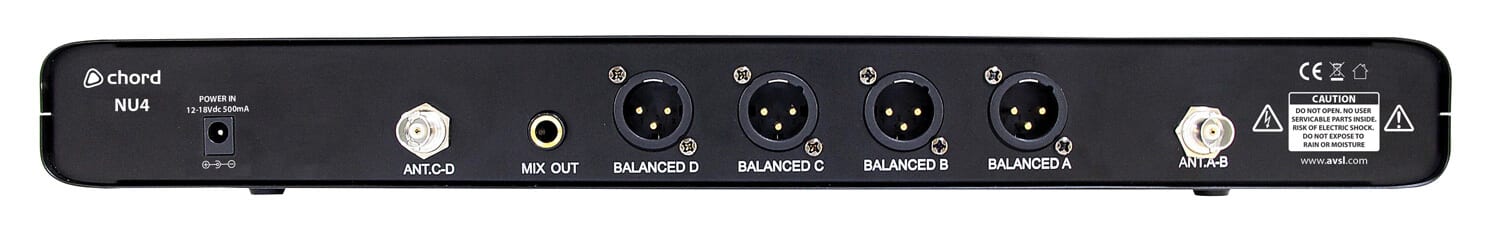

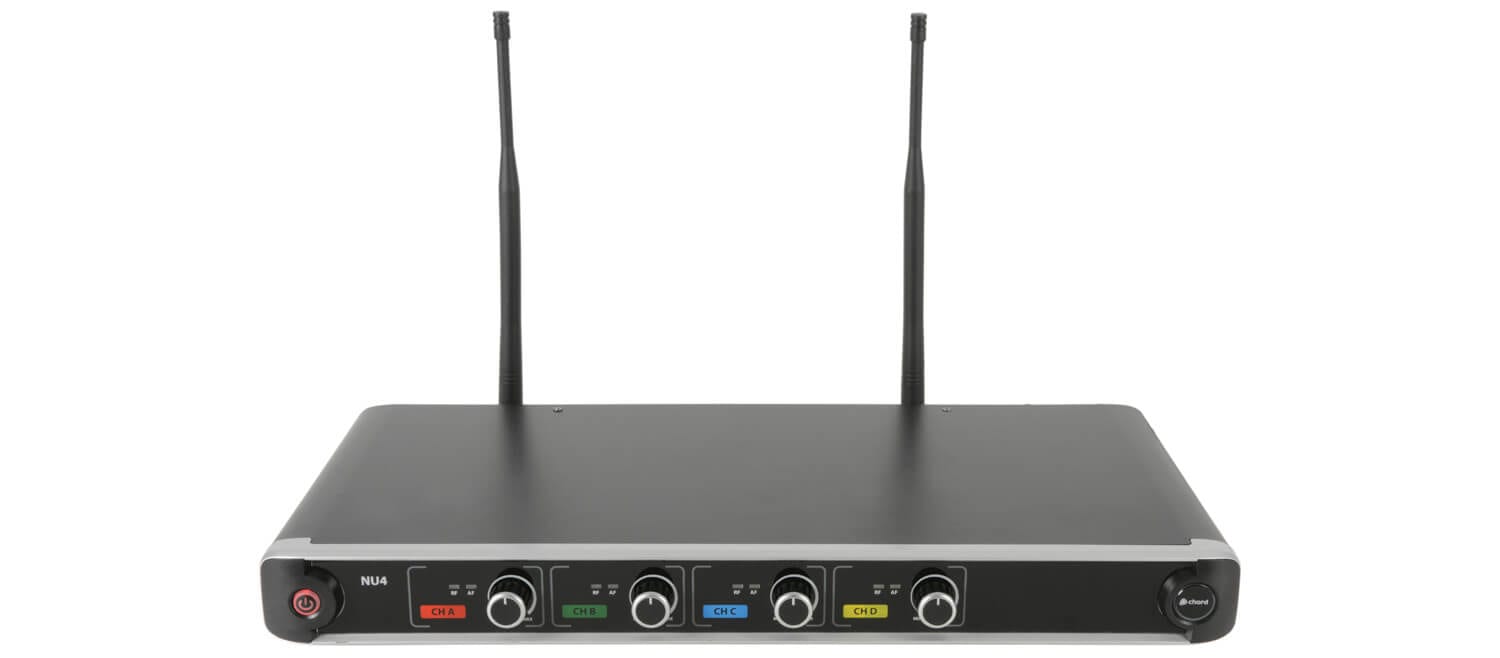

NU4 – UHF wireless system with 4 independent channels. The receiver is 19″ rack-mountable and features 4 separate XLR outputs or a mixed jack output. Available in sets with 4 handheld or 4 beltpack trans…
- Individual or mixed outputs
- 4 licence-free UHF frequencies with pilot tone
- Supplied with 4 colour coded transmitters

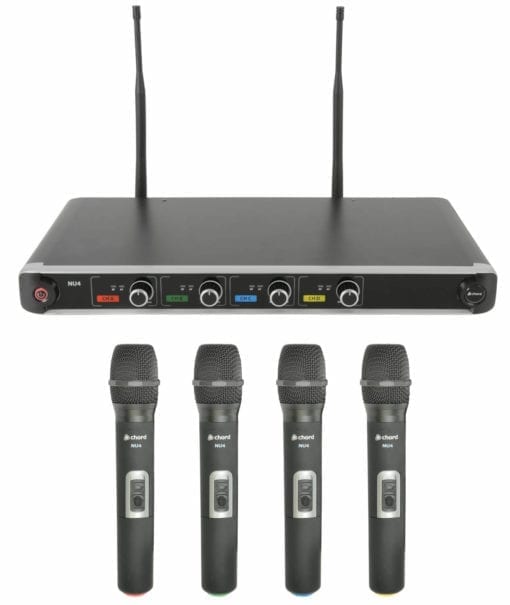

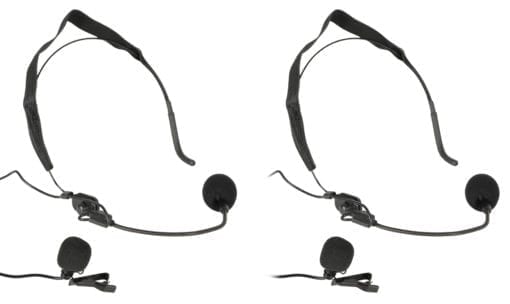

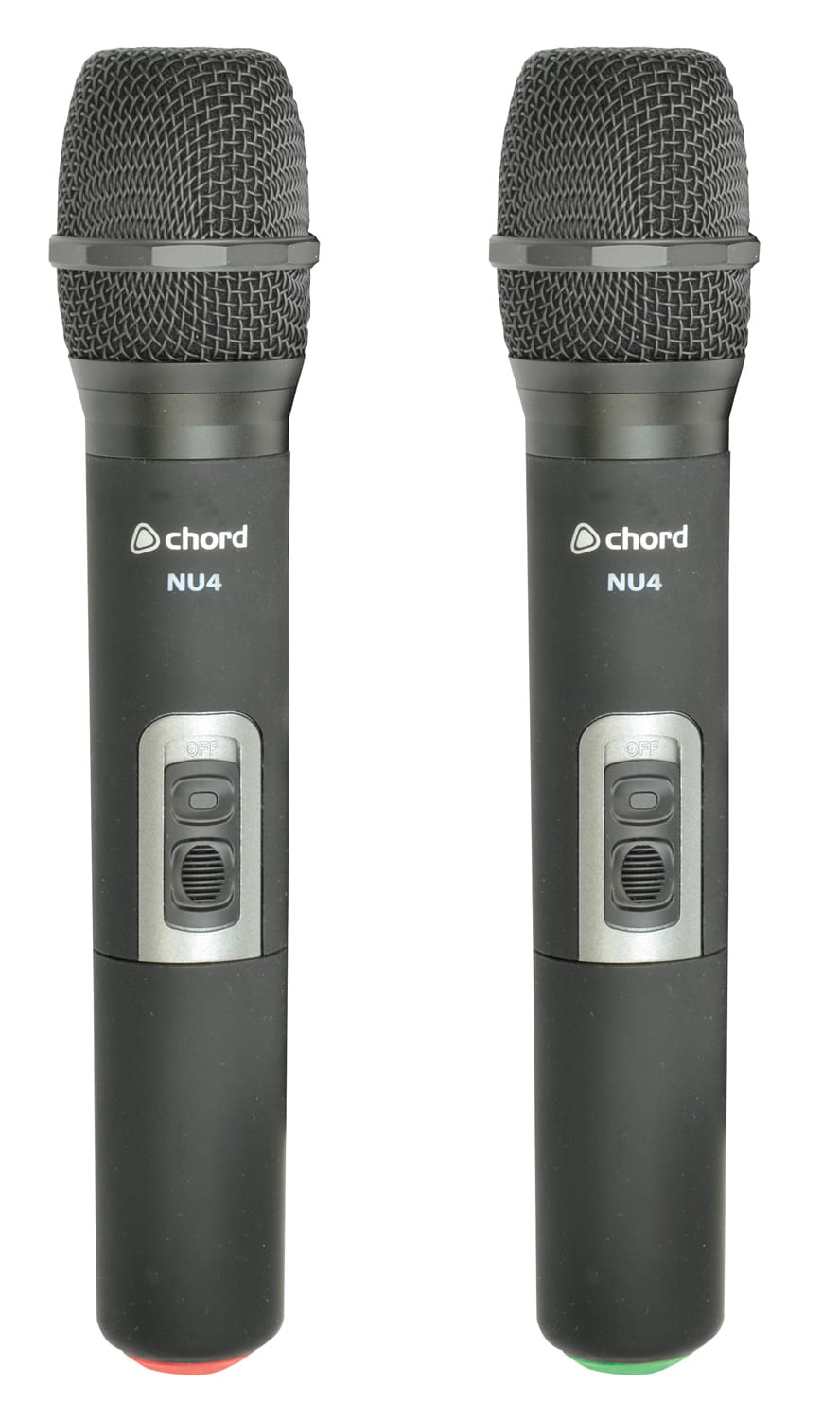

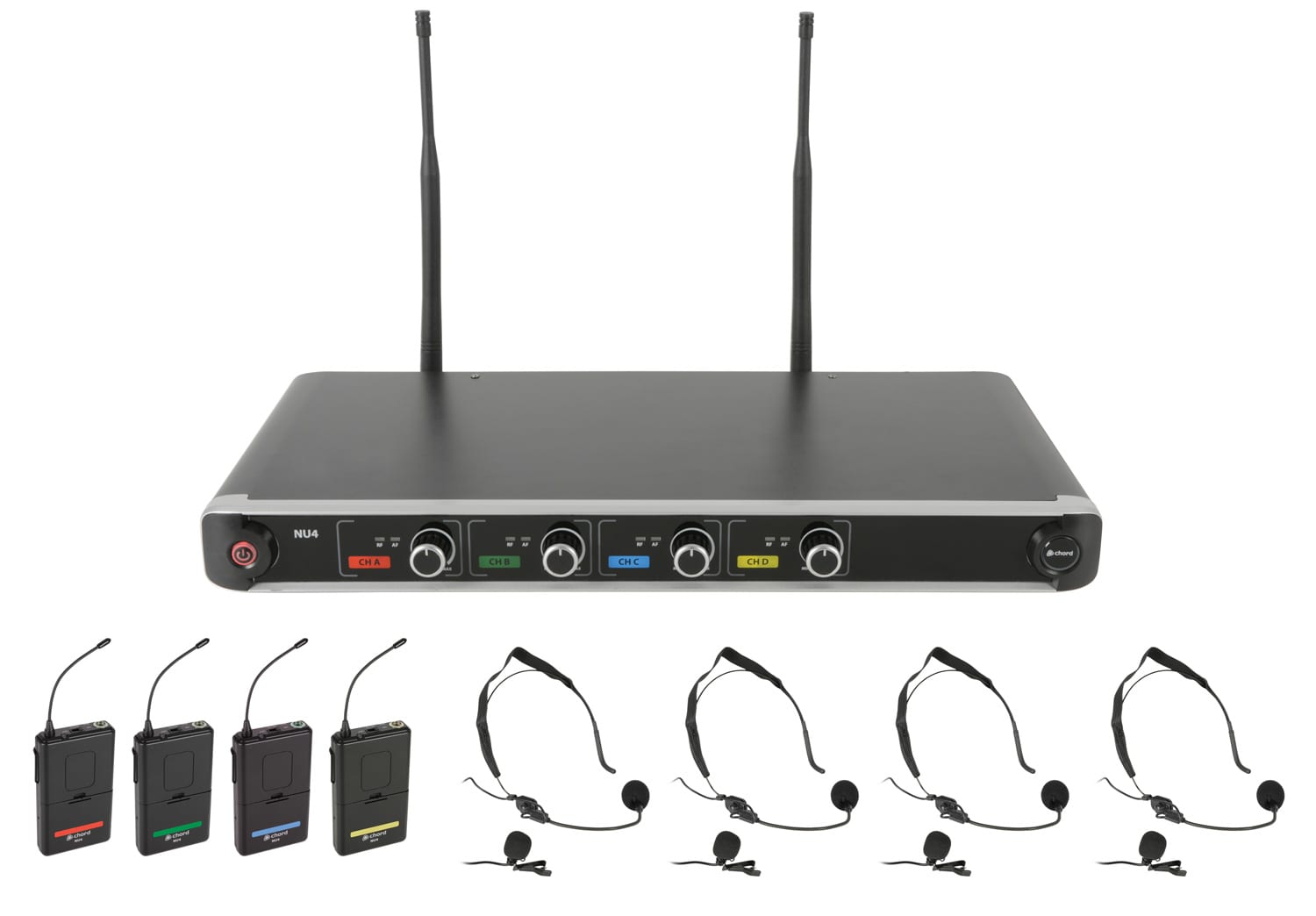

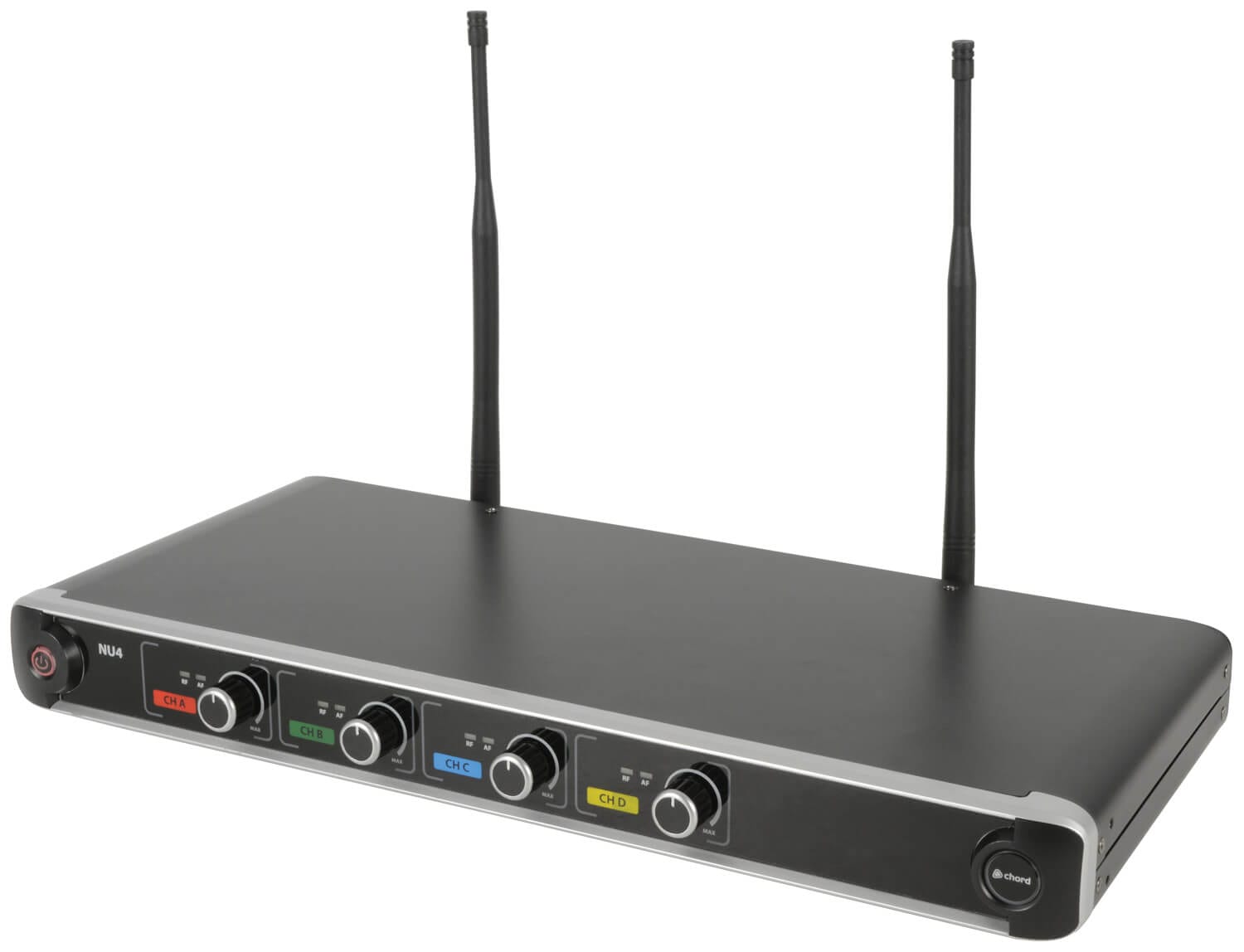

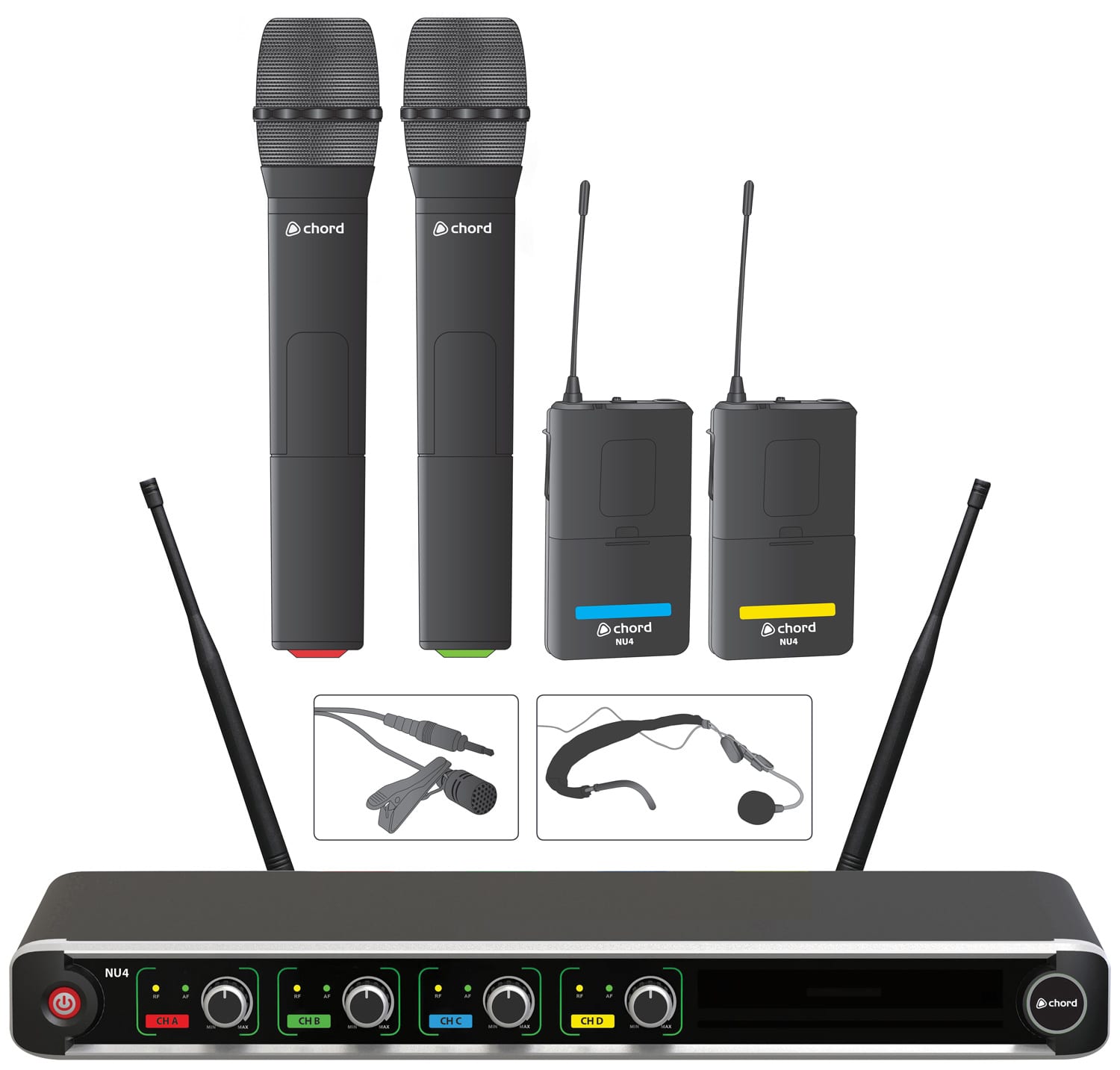

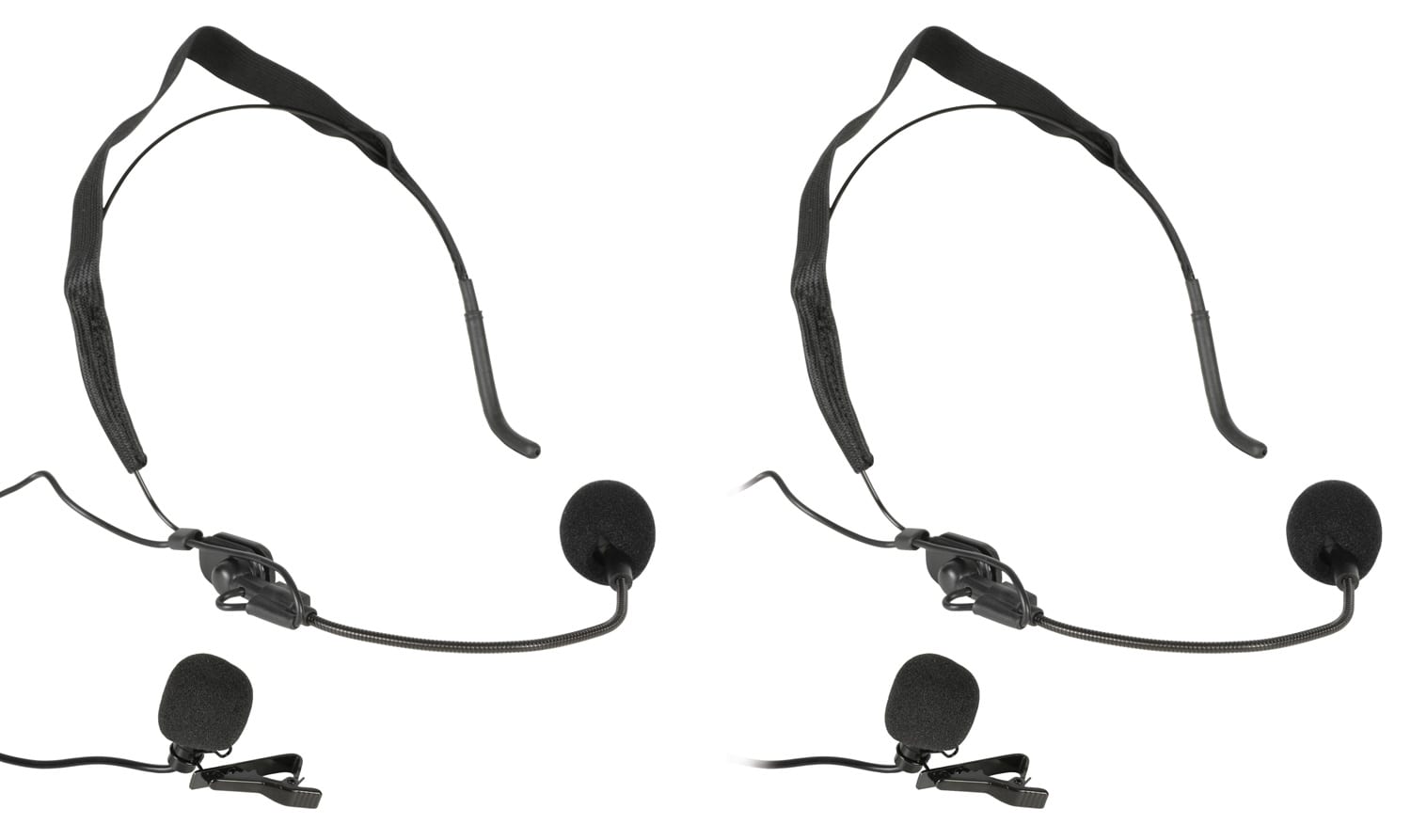

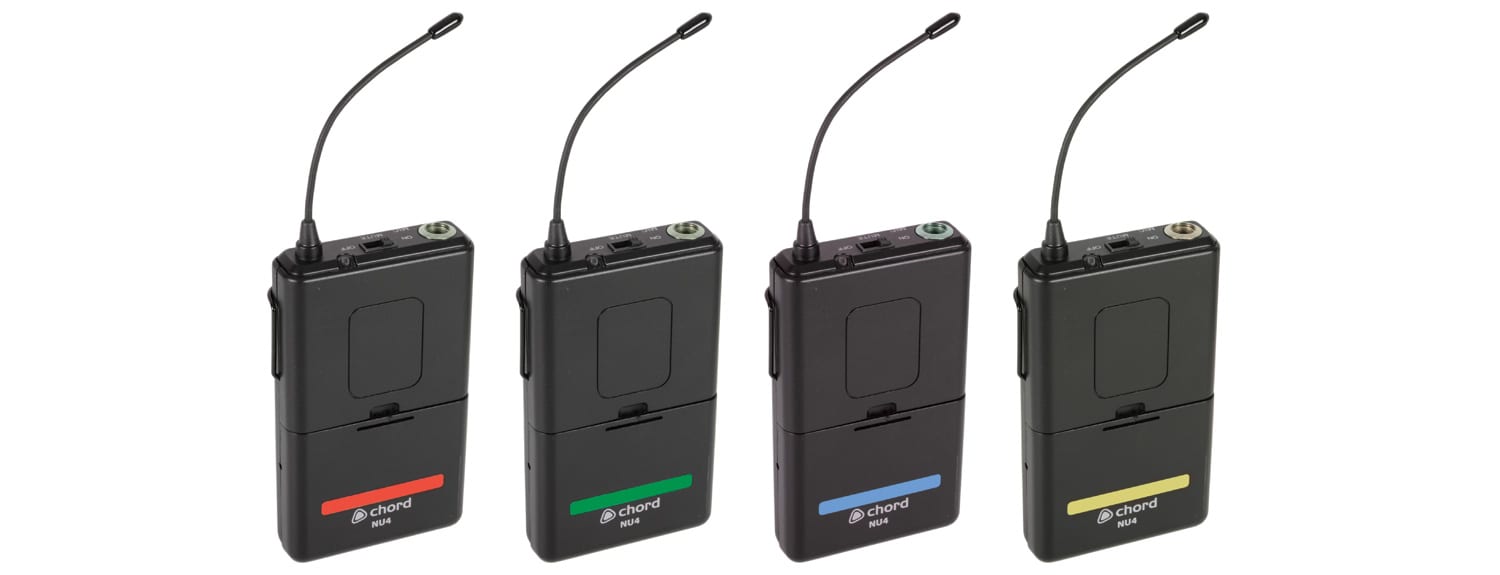

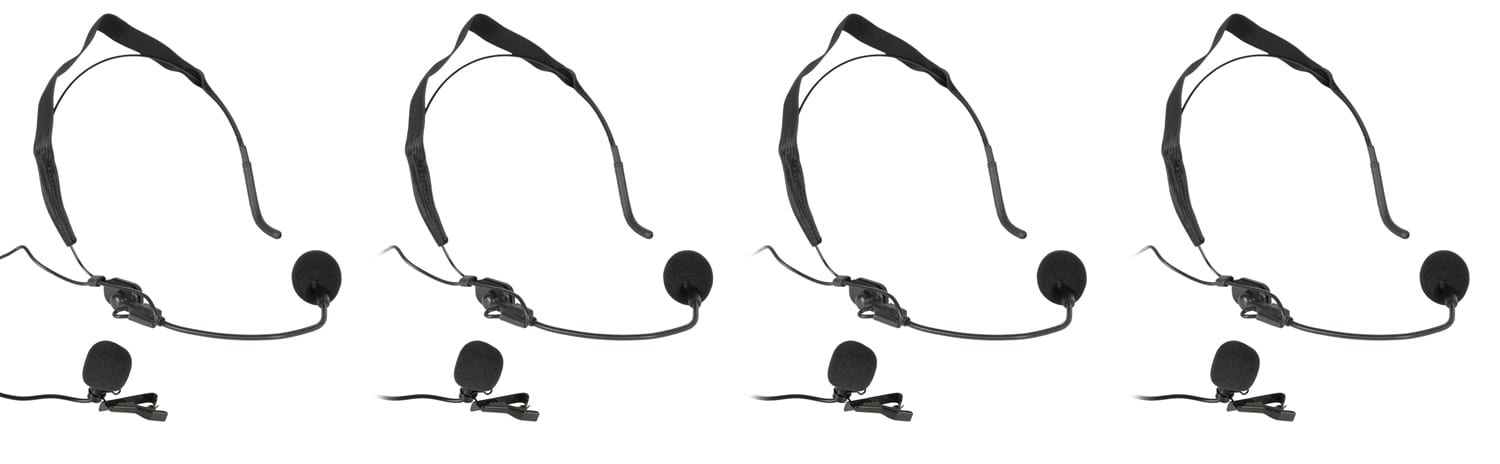

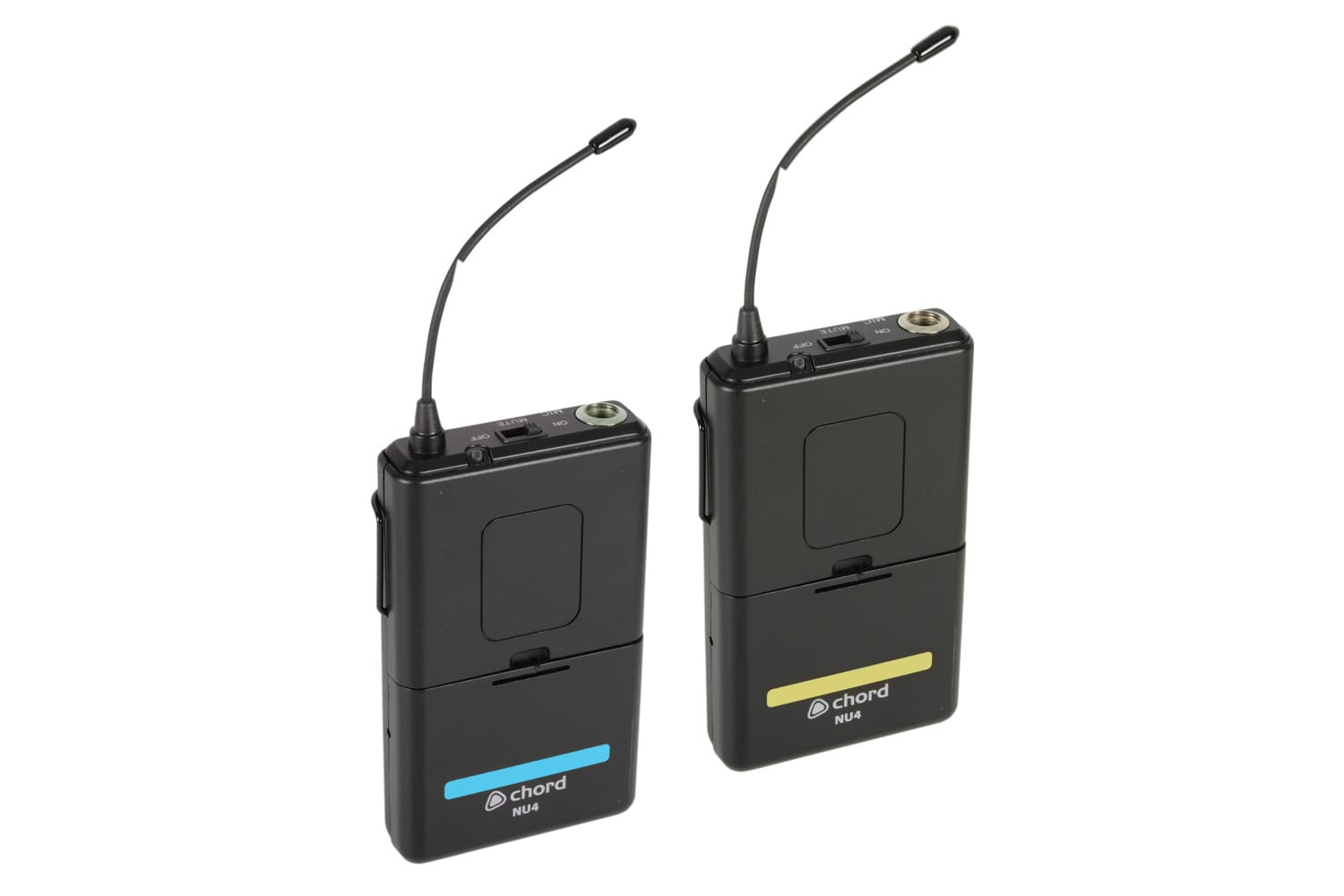

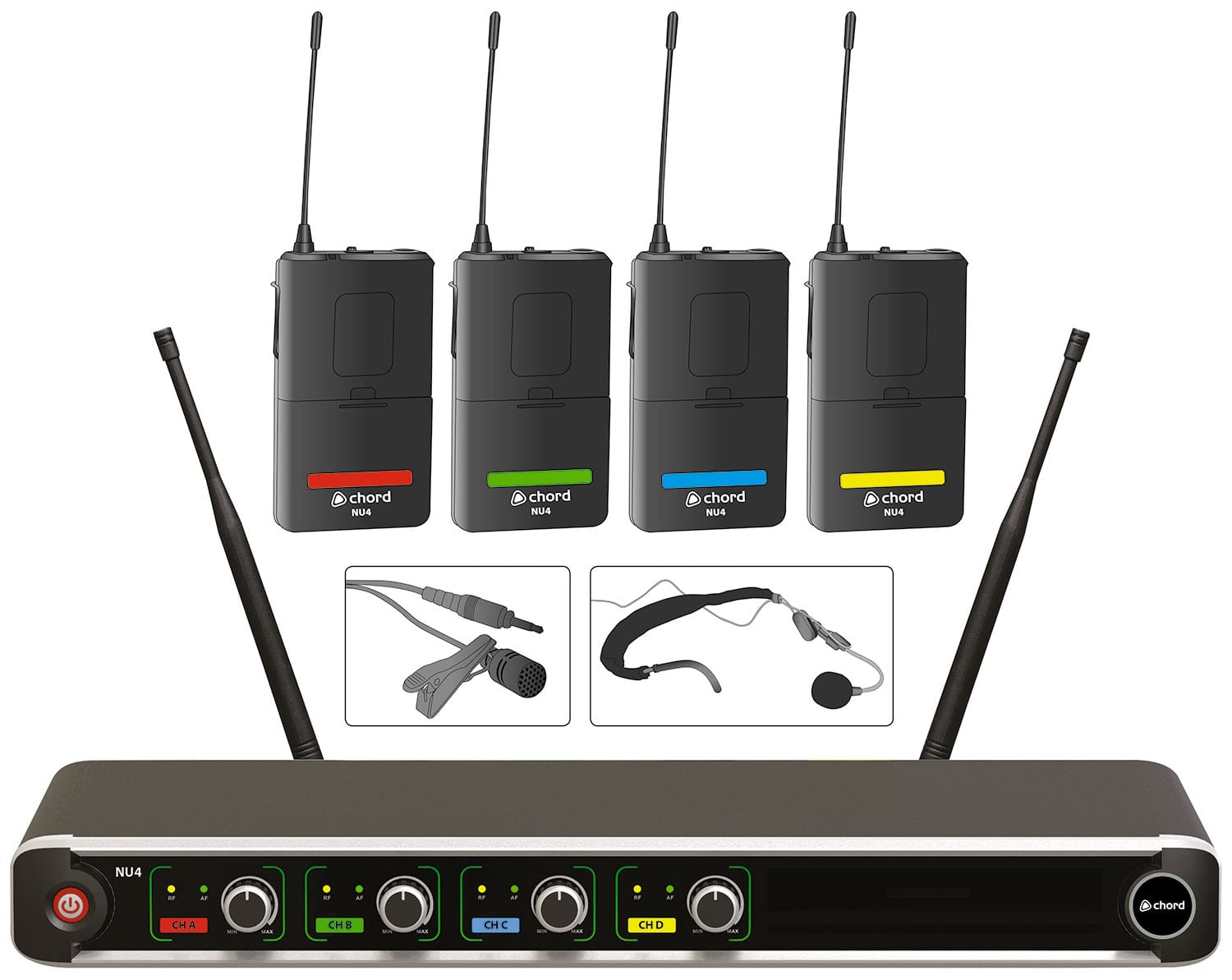

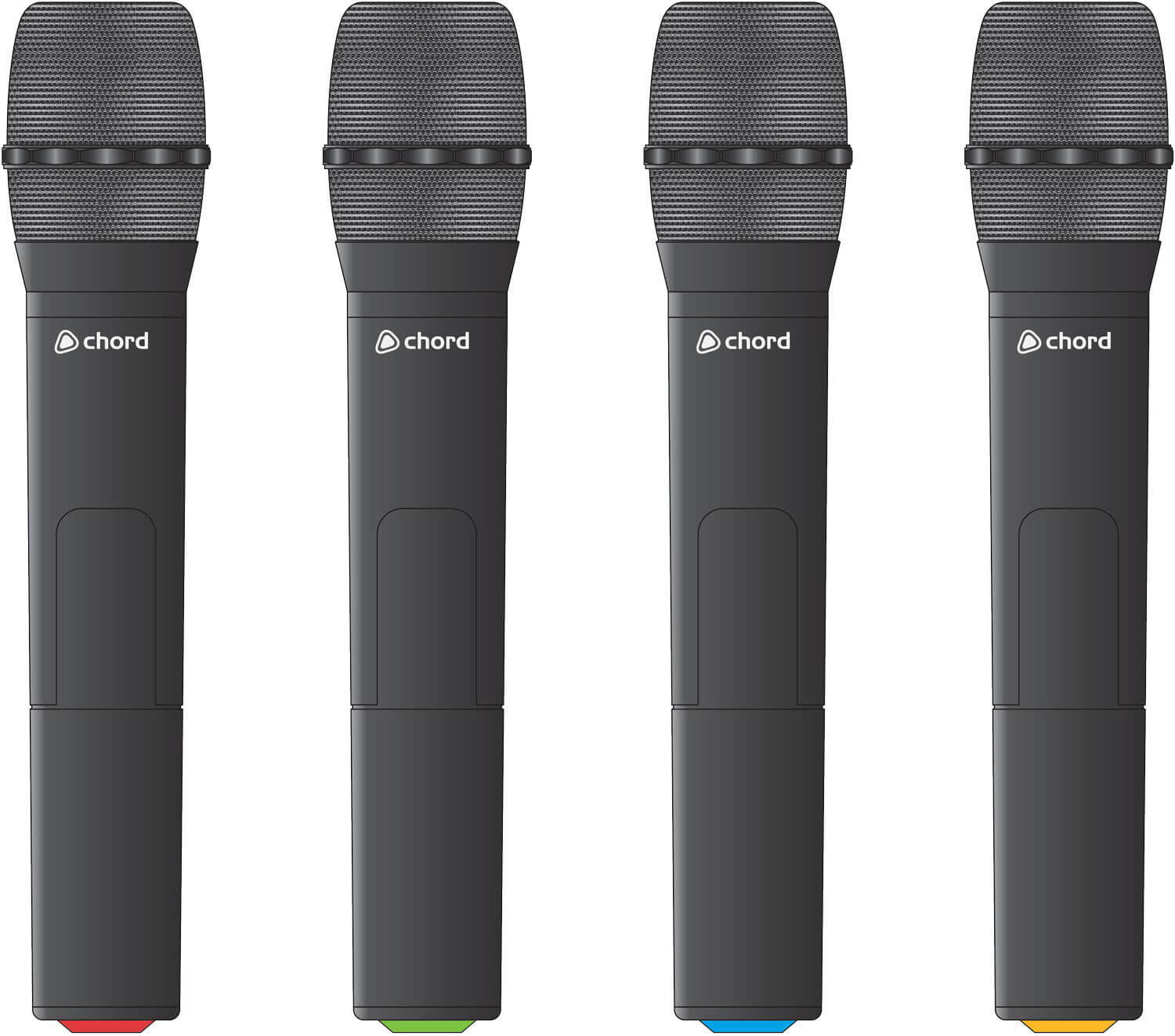

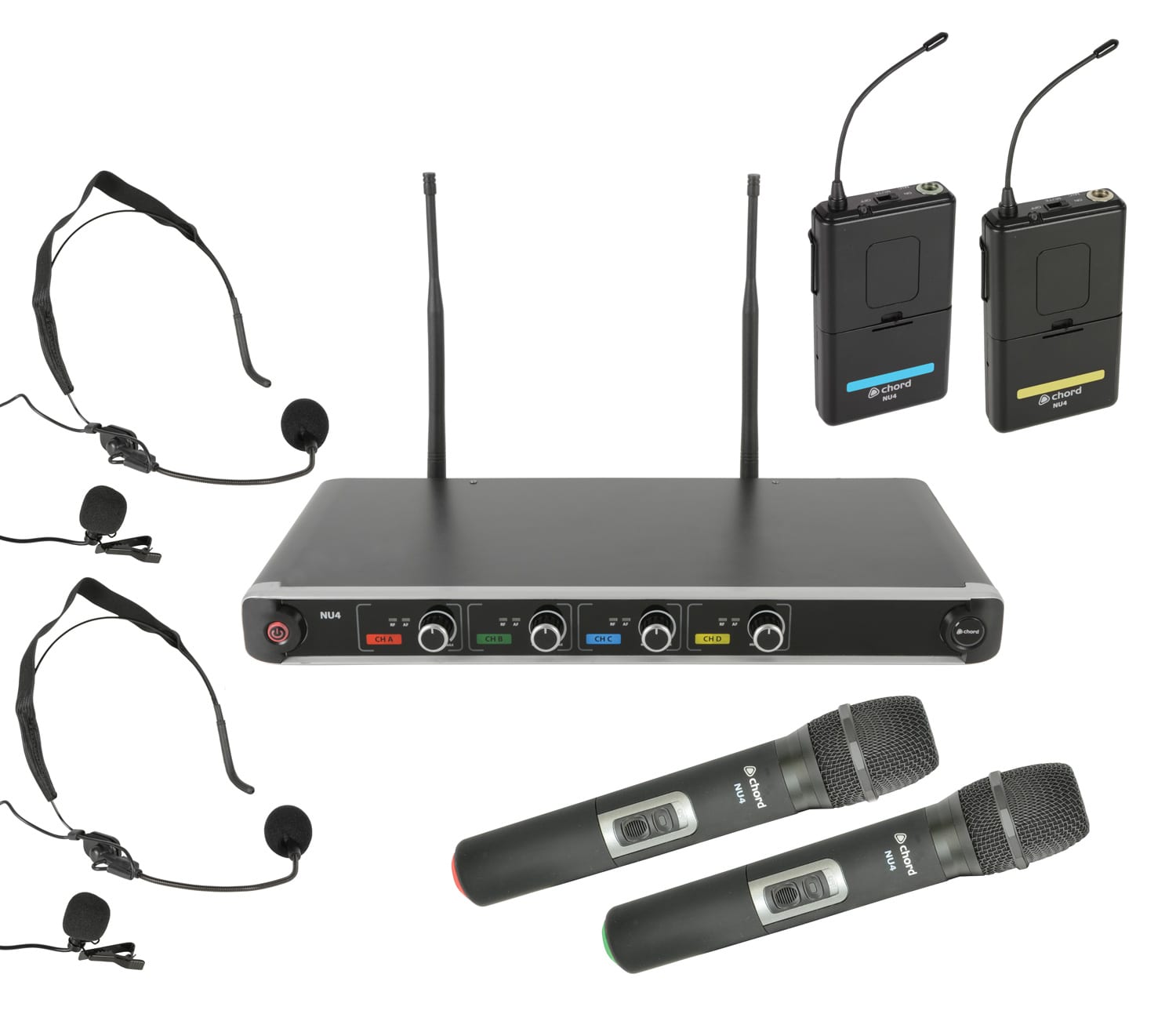

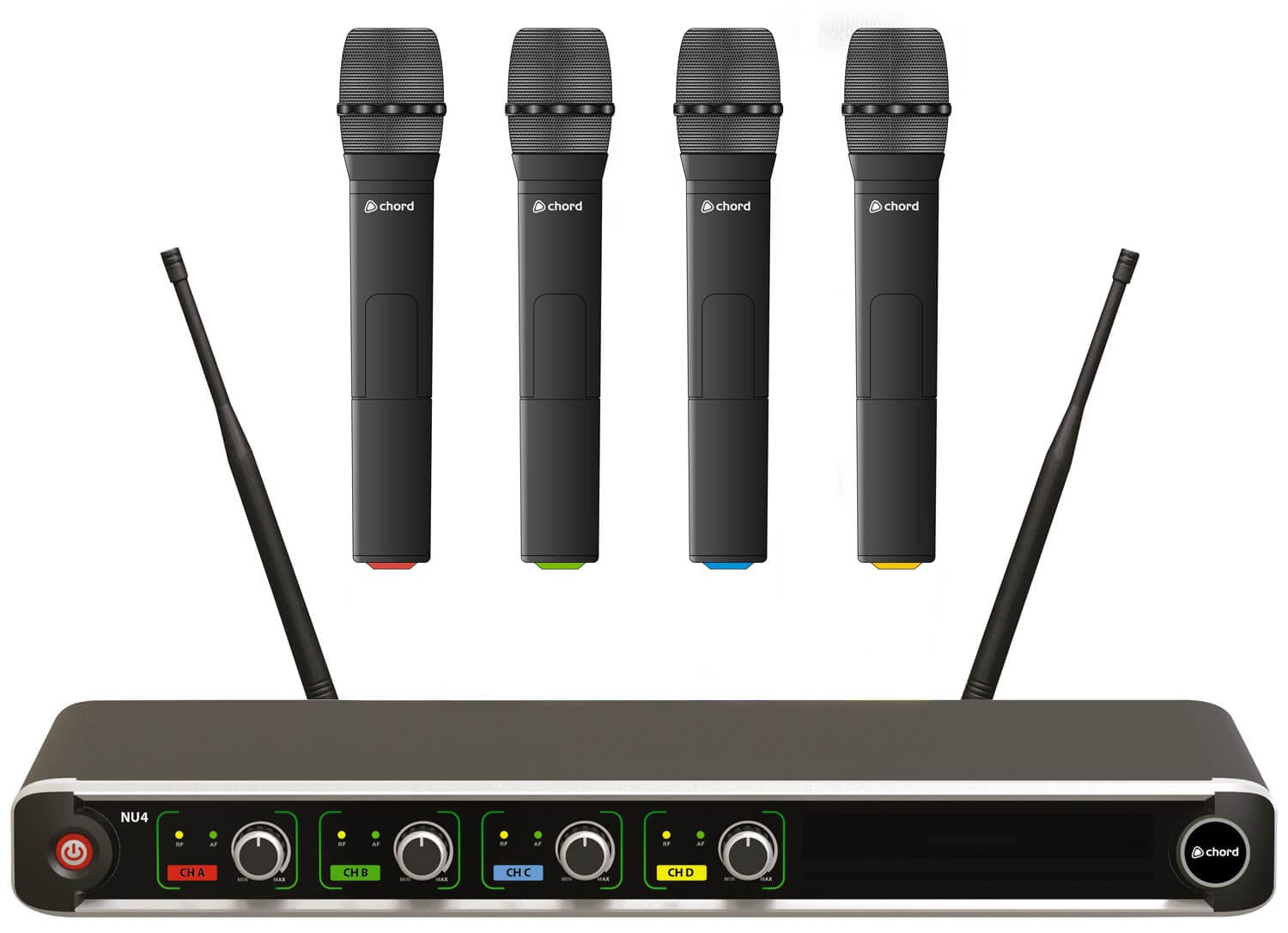

The NU4 is a UHF wireless system with 4 independent channels. The receiver is 19″ rack-mountable and features 4 separate XLR outputs or a mixed jack output. Available in sets with 4 handheld or 4 beltpack transmitters (with a choice of neckband or lavalier microphone for each beltpack) or a combo set with 2 of each. Suitable for vocal groups, theatres and presentations.
- Individual or mixed outputs
- 4 licence-free UHF frequencies with pilot tone

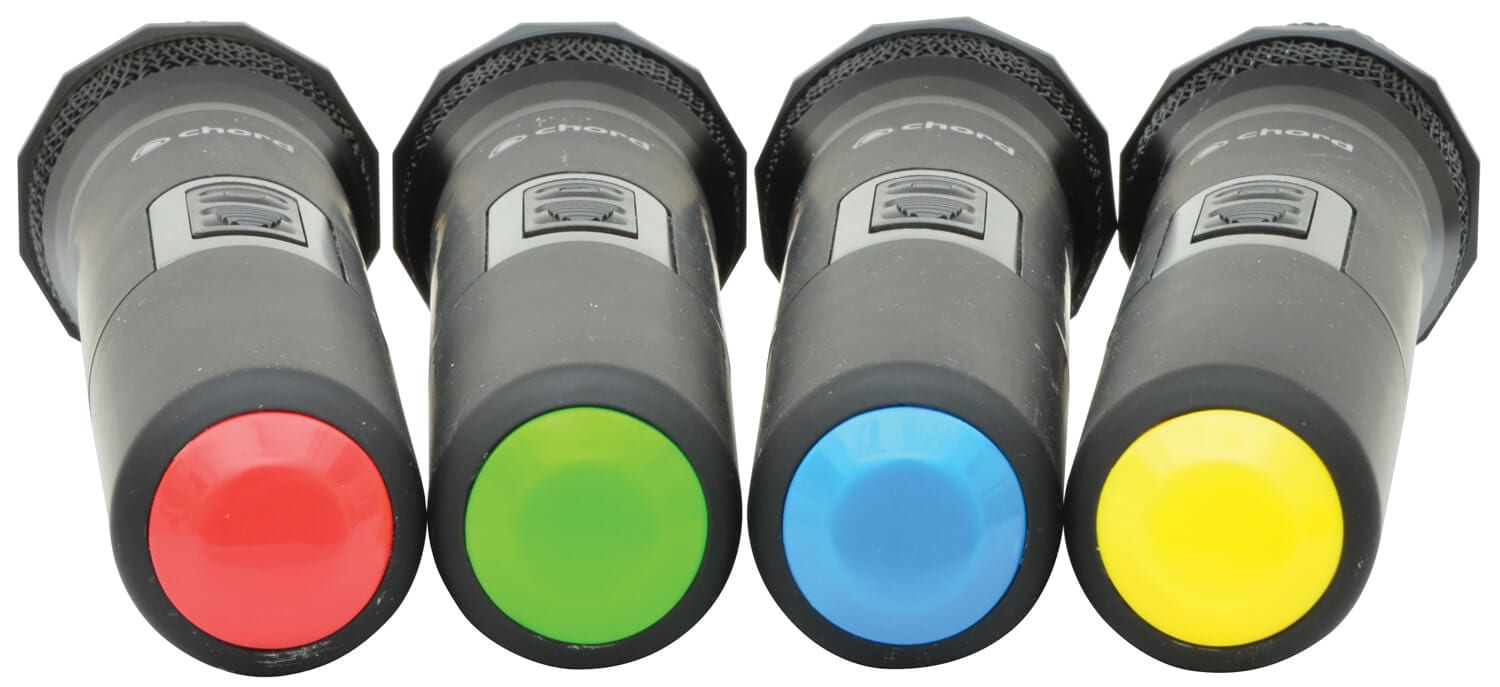

- Supplied with 4 colour coded transmitters
- 19″ rack-mountable (1U)
Specification : Common
- Power supply: 12-18Vdc 500mA adaptor (supplied)
- Dimensions: receiver482 x 225 x 44mm (inc. rack ears)
- Weight: receiver3.0kg
- Batteries: 8 x AA (included)

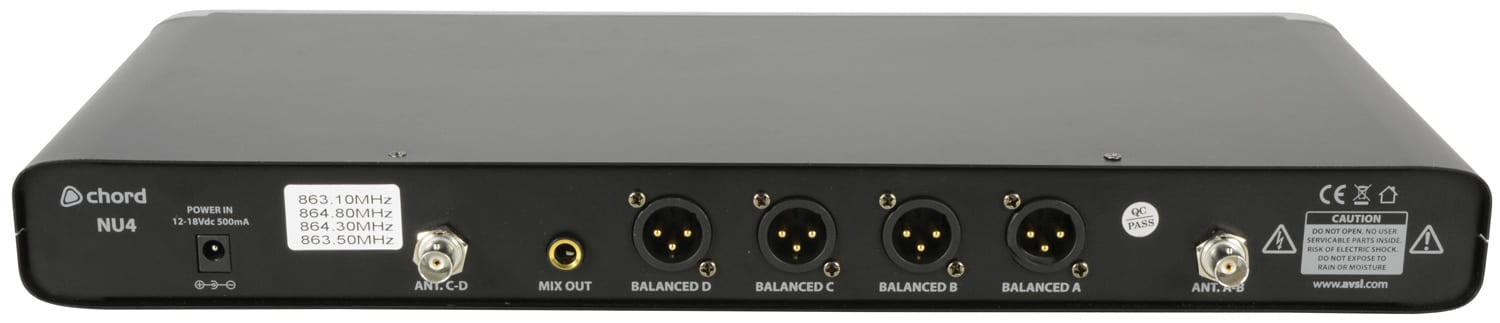

- Carrier frequencies: Red 864.8 ,Green 864.3, Blue 863.42, Yellow 863.1 (all in MHz)
Specification : Versions
| 171.843UK | 171.844UK | 171.845UK | |
|---|---|---|---|
| Dimensions : handheld transmitter | 243 x 48mmØ | N/A | 243 x 48mmØ |
| Weight : handheld transmitter | 238g (no battery) | N/A | 238g (no battery) |
| Dimensions : beltpack transmitter | N/A | 205 x 68 x 25mm | 205 x 68 x 25mm |
| Weight : beltpack transmitter | N/A | 76g (no battery) | 76g (no battery) |
| Dimensions : neckband microphone | N/A | 180 x 140 x 60mm | 180 x 140 x 60mm |
| Weight : neckband microphone | N/A | 20g | 20g |
| Dimensions : lavalier microphone | N/A | 27 x 12mmØ | 27 x 12mmØ |
| Weight : lavalier microphone | N/A | 20g | 20g |
Trade information
| 171.843UK | 171.844UK | 171.845UK | |
|---|---|---|---|
| Barcode / EAN | 5015972177488 | 5015972193150 | 5015972193167 |
| Package type | Gift Box | Gift Box | Gift Box |
| Package dimensions | 380 x 530 x 90mm | 380 x 530 x 90mm | 380 x 530 x 90mm |
| Package weight | 6.80kg | 6.80kg | 6.80kg |
| Package quantity | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 390 x 545 x 310mm | 390 x 545 x 310mm | 390 x 545 x 310mm |
| Carton weight | 20.40kg | 20.40kg | 20.40kg |
| Carton quantity | 3 packages | 3 packages | 3 packages |
