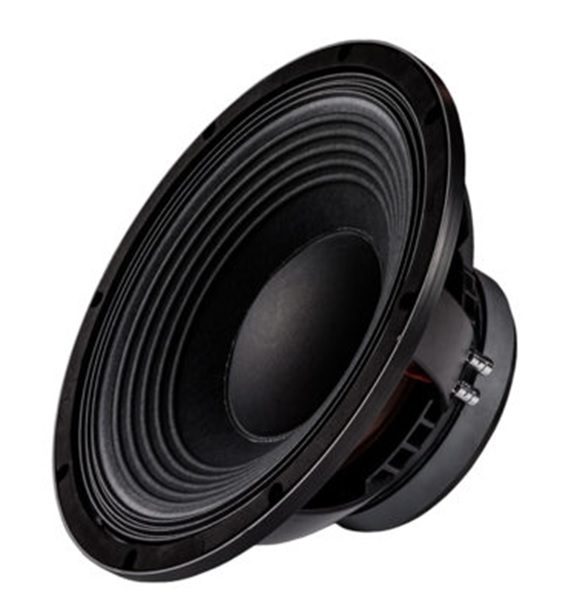

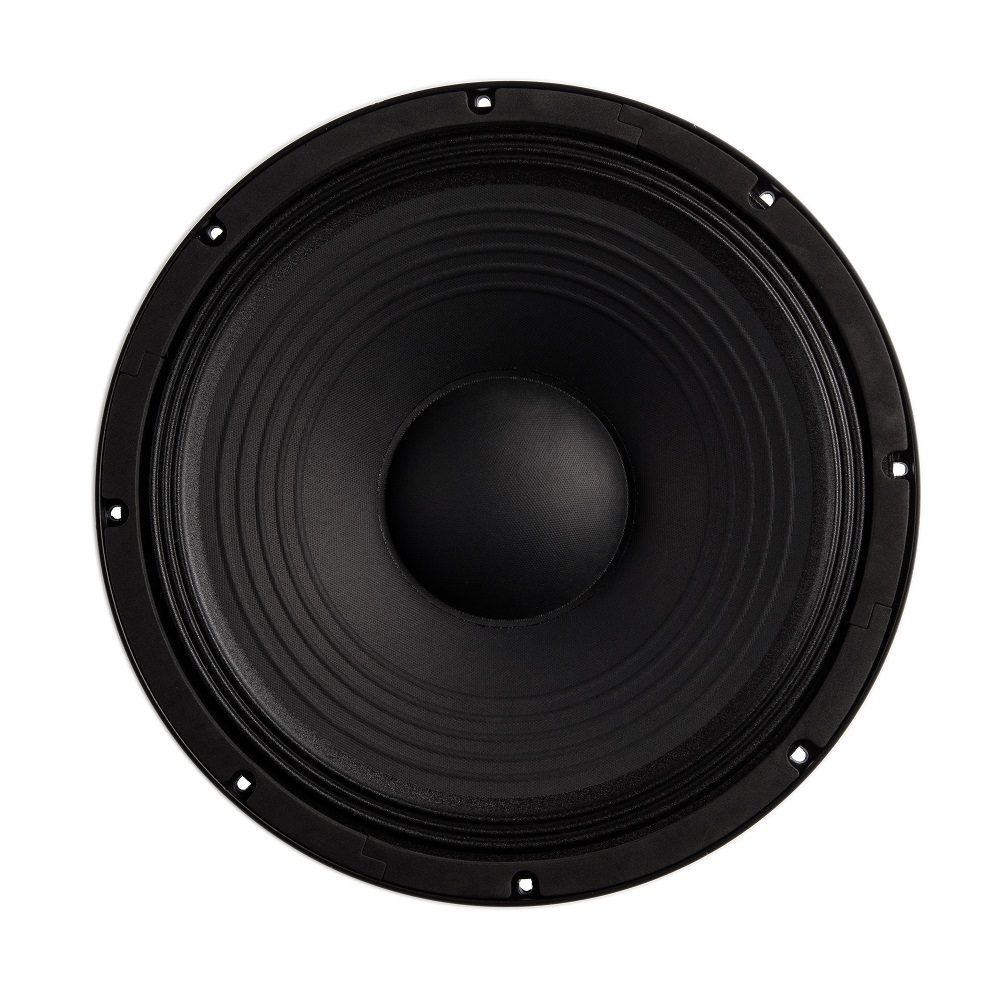

BishopSound BDP15FR 15″ 600w RMS 8 Ohm Full Range LF Driver

£120.00

Key Features

  • Nominal Impedance 8 ohms
  • Power Rating 600w RMS
  • Music Program 1200W – 99dB
  • Magnet Weight 95 oz
  • Usable Frequency Range 38Hz – 2.7kHz

Call 02072494814 to Pre-Order

Description

  • This 15″ LF speaker is a high-quality PA speaker using a cast aluminium chassis. Suitable for 2-way cabinets or subwoofers. The frequency range is 38Hz – 2.7kHz

    3 Inch voice coil.

    Look in the Technical specifications section to learn just how superb this driver is. My speaker outperforms the Eminence Kappa 15 and is more substantial as the Kappa is only pressed steel.

    Bishopsound Woofers are made from professional-grade materials the Premium Series features Kapton coils, ferrite magnets, paper cones with rolled cloth edges and faston push terminals.

    Re-cone kits are available, but we sell over 2,000 drivers for every re-cone kit, sold, proving our production, QC and ultimate reliability.

  • Product Weight 10kg
    Product Depth 20cm
    Product Height 44cm
    Product Width 44cm
    Nominal Basket Diameter 15″, 381mm
    Nominal Impedance 8 ohms
    Power Rating 600w
    Music Program Power 1200W
    Resonance 39Hz
    Usable Frequency Range 38Hz – 2.7kHz
    Sensitivity 99dB
    Magnet Weight 95 oz.
    Gap Height 0.37″, 9.53mm
    Voice Coil Diameter 3″, 76.2mm
    Resonant Frequency (fs) 39Hz
    DC Resistance (Re) 5.4
    Coil Inductance (Le) 1.27mH
    Mechanical Q (Qms) 6.08
    Electromagnetic Q (Qes) 0.41
    Total Q (Qts) 0.38
    Compliance Equivalent Volume . (Vas) 159 liters / 5.6 cu.ft
    Peak Diaphragm Displacement Volume (Vd) 471cc
    Mechanical Compliance of Suspension (Cms) 0.15mm/N
    BL Product (BL) 18.6 T-M
    Diaphragm Mass Inc. Airload (MMs) 105 grams
    Efficiency Bandwidth Product (EBP) 95
    Maximum Linear Excursion (Xmax) 5.5mm
    Surface Area of Cone (Sd) 856.3 cm2
    Maximum Mechanical Limit (Xlim) 10.4mm
    Vented 62-193 liters / 2.2-6.8 cu.ft.
    Driver Volume Displaced 251.7 cu.in. / 4.12 liters
    Coil Construction Copper voice coil
    Coil Former Polyimide former
    Magnet Composition Ferrite magnet
    Core Details Vented core
    Basket Materials Cast Alloy Basket
    Cone Composition Paper cone
    Cone Edge Composition Cloth cone edge
    Dust Cap Composition Solid composition paper dust cap

Additional information

Weight 10 kg
Dimensions 440 × 440 × 200 mm
Ohms

4 Ohm, 8 Ohm
