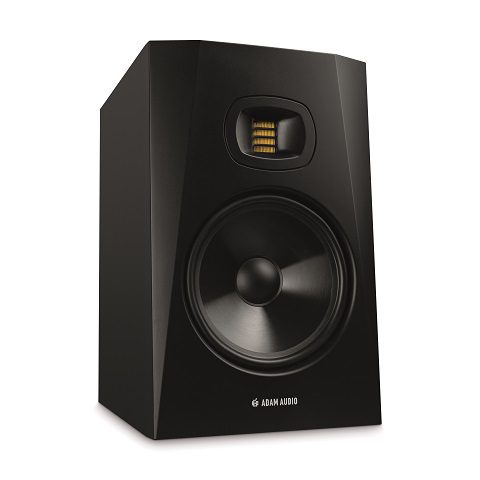

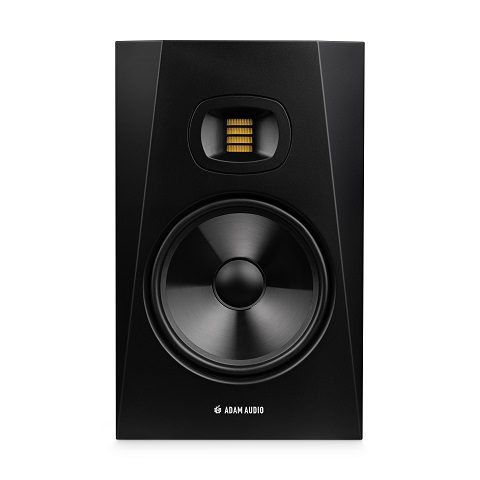

The T8V is an affordable, professional 2-way powered studio monitor with an 8˝ woofer and ADAM Audio’s latest addition to the T Series. Designed around the same technology, features and build quality as its smaller siblings, the T8V provides best-in-class characteristics and sound performance.
The T8V impresses with a multitude of features that bring real benefits to the user: The U-ART tweeter’s 4:1 velocity transfer ratio, in combination with the new Class D amplifiers’ high dynamic range, yield respective max. peak SPL of 118 dB per pair. The tweeter, which extends up to 25 kHz, works as a team with the HPS Waveguide. This allows an optimal radiation of the high frequencies, which means the advantage of a more controlled, larger usable sweet spot during monitoring. With a bass extension down to 33 Hz, the T8V is especially suitable for users who produce bass-heavy music.
The T8V is the perfect studio speaker for those who have always wanted to work with an 8“ monitor from ADAM Audio, but where budgets have been insufficient. The 5-year warranty gives users additional security and the certainty of having purchased a quality product.
FEATURES & BENEFITS
PRODUCT FEATURE
BENEFIT TO THE CUSTOMER
U-ART 1.9” Accelerated Ribbon Tweeter
Allows longer operation with fewer signs of fatigue
Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
The air velocity ratio of 4:1 during the sound generation by folded U-ART membrane
Direct, fast response in the high-range even with complex transients
HPS waveguide from the S Series
Makes dispersion more consistent and imaging more stable over a wider area
Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc.
Lightweight polypropylene construction of the woofer
Excellent transient response even at high sound levels without breakup of the diaphragm
Vertical 2-way system with 8” woofer
High resolution of the stereo image
Spacious rear-firing bass reflex port
Bass reproduction with very low compression
Linear frequency response of 33 Hz to 25 kHz (-6 dB)
Unbiased reproduction in a wide frequency band
Maximum peak sound pressure per pair in 1 m ≥ 118 dB
Powerful, compression-free sound reproduction even at very high sound levels
DSP-powered crossover design
Smooth frequency response without interferences between the drivers in the critical mid-range
Simple room acoustic adjustments via high- and low-shelf filters
Allows optimal adaptation to acoustically difficult listening environments or individual preferences
Analog inputs over XLR and RCA
Optimized for balanced and unbalanced line signals
Acoustically optimized cabinet geometry
Reduction of unwanted reflections on the cabinets
2 years warranty with optional extension to 3 years with the registration of the product
Full repair service if required for 5 years
TECHNICAL DATA
WOOFER
Number
1
Basket Ø
8″ (203 mm)
Voice Coil Ø
1″ (26 mm)
Cone Material
Polypropylene
TWEETER
Number
1
Type
U-ART
Diaphragm Area
4 inch² (2420 mm²)
Equiv. Diaphragm Ø
1.9″ (48 mm)
Velocity Transform Ratio
4:1
Diaphragm Weight
0.17 g
Waveguide
HPS
BUILT-IN AMPLIFIERS
Number
2
Woofer
1
Type
PWM
Amp. Power RMS
70 W
Tweeter
1
Type
PWM
Amp. Power RMS
20 W
CONTROL OPTIONS
Input Sensitivity
-10 to +4 dB
Gain
Yes
High Shelf EQ > 5 kHz
– 2 dB, 0 dB, +2 dB
Low Shelf EQ < 300 Hz
– 2 dB, 0 dB, +2 dB

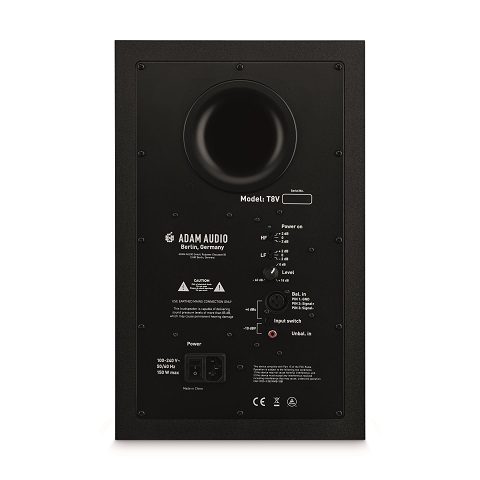

INPUT CONNECTORS
Analog
XLR / RCA
Input Impedance
10 kOhm / 20 kOhm
GENERAL DATA
Panel
Rear
Frequency Response
33 Hz – 25 kHz (-6 dB)
THD > 80 Hz
0.5 %
Max. SPL per pair at 1 m
≥118 dB
Crossover Frequency
2.6 kHz
Max. Power Consumption
150 W
Weight
21.6 lb (9.8 kg)
Height x Width x Depth
15.8″ x 9.8 “ x 13.2“ (400 mm x 250 mm x 335 mm)
Warranty
5 years (2 years warranty plus 3 years optional with product registration)
